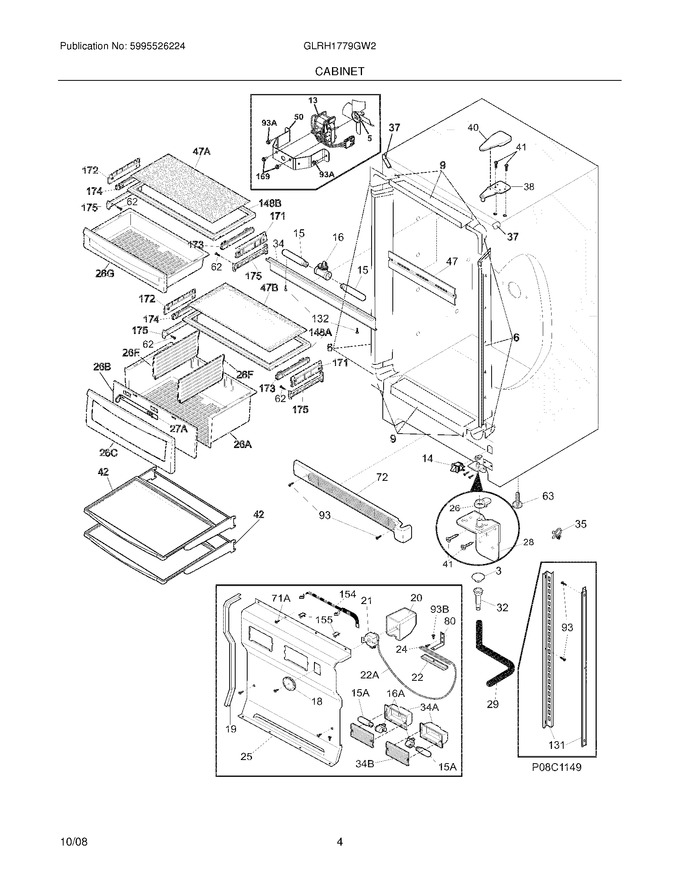

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	297200600		Breaker Kit W/corners,no Lock Slot				$ 52.36
9	297200100		Breaker Kit W/corners,32`` ,top And Bottom				$ 59.28
14	216822900		Switch,light/lamp ,ramp   (Replaces: 216998000)			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp,long ,blue Tint ,40 W ,120v   (Replaces: 216988100)			Immediately	$ 73.06
16	241622802		Socket-light   (Replaces: 241507803)				$ 65.93
18	216707200		Knob,temp Control				$ 44.10
19	216204902		Gasket-evap Cover			Immediately	$ 35.74
20	216967201		Cover,temp Control   (Replaces: 216967200)				$ 15.18
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5304460604		Screw,type A ,10-24 X 3/8		Appelez-nous	-
25	297099256		Cover-evaporator		Appelez-nous	-
26	216503300		Ramp,door Closer				$ 8.82
28	297283900		Hinge-bottom,stepped Pin   (Replaces: 297240800)			Immediately	$ 54.23
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216816223		Shield-light		Appelez-nous	-
35	216273000		Clip, Drain Hose				$ 22.42
37	5303918606		Trim-cabinet Corner,white ,(2)   (Replaces: 241611301)				$ 7.09
38	297283803		Hinge-upper   (Replaces: 297164300)			Immediately	$ 19.52
40	297164400		Cover-hinge				$ 12.65
41	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 14.18
42	297108900		Shelf-sliding,w/brackets				$ 110.67
47	216661601		Baffle-plate				$ 51.76
50	216394050		Bracket,fan Motor Mount				$ 22.75
62	297142600		Screw,blunt ,8-32 X 5/8				$ 13.01
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	297036907		Grille/kickplate,32`` ,white   (Replaces: 297036900)				$ 39.29
80	06594601		Bracket, Control				$ 17.64
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
131	297130200		Channel-shelf Mtg,side ,(2)				$ 55.99
132	5304460601		Screw,6-20ab X 3/8		Appelez-nous	-
154	297053000		Wire,jumper				$ 57.42
155	30534600		Clip,(2)   (Replaces: 5303313703)				$ 3.79
169	216912401		Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2)				$ 12.76
171	297092700		Bracket,crisper Cover ,rh				$ 55.36
172	297092701		Bracket,crisper Cover ,lh				$ 56.88
173	5304515502		Slide,crisper ,rh   (Replaces: 297107600)				$ 77.36
174	5304515501		Slide,crisper ,lh   (Replaces: 297107601)				$ 78.08
175	297099500		Support-crisper			Immediately	$ 47.03
15A	241552802		Light Bulb/lamp,short   (Replaces: 297048600)			Immediately	$ 50.45
16A	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 19.52
22A	297058500		Tube,10`` ,plastic		Appelez-nous	-
26A	297091601		Case-crisper,deep				$ 106.63
26B	297091800		Panel,crisper Window				$ 109.67
26C	297091703		Panel,crisper Front				$ 92.19
26F	297099401		Divider-crisper,deep		Appelez-nous	-
26G	297123700		Case-deli				$ 209.18
27A	240362201		Control-humidity				$ 69.46
34A	297053100		Shield-light		Appelez-nous	-
34B	297053200		Lens,light				$ 43.95
47A	297102700		Insert-pan Cover,glass				$ 38.38
47B	297102701		Insert-pan Cover,glass ,lower				$ 41.75
71A	297146800		Screw,8-18ab X 0.470		Appelez-nous	-
93A	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping				$ 13.01
93B	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
F13	297309000		Motor,fan ,115 V   (Replaces: 216934100)			Immediately	$ 55.32
F148	297092502		Frame-crisper Cover,lower				$ 205.07
F148	297092503		Frame-deli Cover				$ 174.60
F21	5304492453		Control Temperature   (Replaces: 216715500)			Immediately	$ 269.25
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
NI	297109500		Washer,vinyl		Appelez-nous	-
NI	297107000		Bracket-shelf		Appelez-nous	-
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	297226503		Energy Guide		Appelez-nous	-
