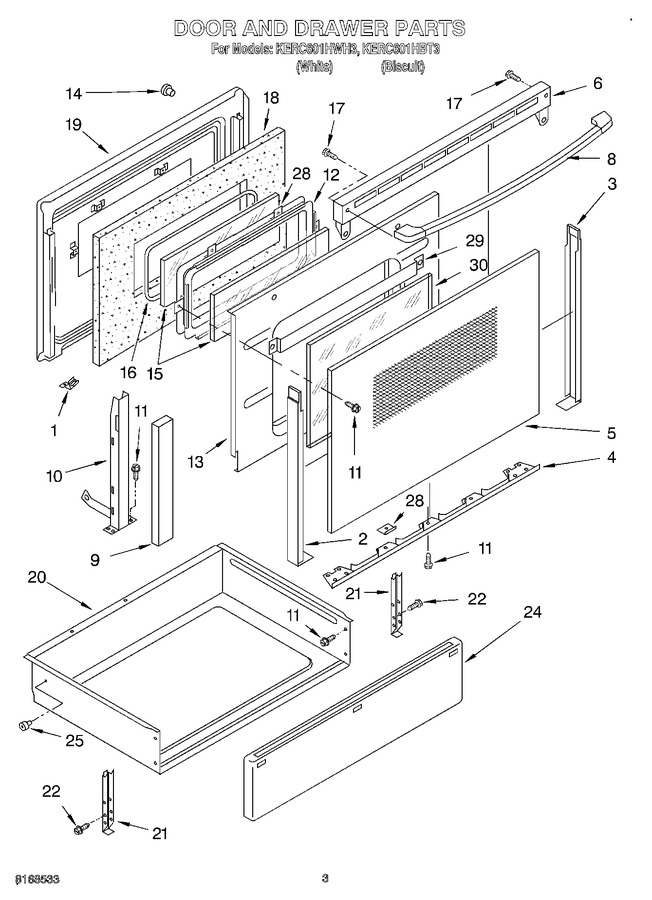

SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Door And Drawer


03 - Oven Chassis


04 - Oven


05 - Rear Chassis


06 - Control Panel, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9750676		Retainer, Glass		Appelez-nous	-
2	9750631PW		Trim, Door-left (white)		Appelez-nous	-
2	9750631PC		Trim, Door-left (biscuit)		Appelez-nous	-
3	9750632PC		Trim, Door-right (biscuit)		Appelez-nous	-
3	9750632PW		Trim, Door-right (white)		Appelez-nous	-
4	9781209PW		Trim, Door Bottom (white)		Appelez-nous	-
4	9781209PC		Trim, Door Bottom (biscuit)		Appelez-nous	-
5	9781627PC		Glass, Door (biscuit)		Appelez-nous	-
5	9781627PW		Glass, Door (white)		Appelez-nous	-
6	9781490		Vent, Door (seal, Door Vent Side)		Appelez-nous	-
6	9753498GC		Vent, Door (biscuit)		Appelez-nous	-
6	9781659		Vent, Door (gasket, Door Vent)		Appelez-nous	-
6	9753498GW		Vent, Door (white)		Appelez-nous	-
8	9780523PC		Handle, Door (biscuit)		Appelez-nous	-
8	9780523PW		Handle, Door (white)		Appelez-nous	-
9	9781449		Gasket, Door Glass		Appelez-nous	-
10	WP9782033		Hinge, Door R Or L   (Replaces: 9750234)			Immediately	$ 208.67
11	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
12	9781602		Frame, Window		Appelez-nous	-
13	9781586		Shield, Door		Appelez-nous	-
14	238614		Bumper, Rubber   (Replaces: 9780771)				$ 72.68
15	WP9781593		Glass, Pyro Door   (Replaces: 9781593)				$ 116.35
16	9781587		Seal, Glass		Appelez-nous	-
17	WPW10001180		Screw, 10-24 X 3/8   (Replaces: 9781072)				$ 7.23
18	9754006		Insulation		Appelez-nous	-
19	9781600GM		Liner, Door				$ 140.49
20	9780583		Drawer & Roller		Appelez-nous	-
21	9750169		Bracket, Drawer		Appelez-nous	-
22	9780272		Screw, 10-16 X 1/2		Appelez-nous	-
24	9750168PW		Front, Drawer (white)		Appelez-nous	-
24	9750168PC		Front, Drawer (biscuit)		Appelez-nous	-
25	WP90296		Clip   (Replaces: 90296)				$ 7.07
25	814229		Support, Roller   (Replaces: 423713)			Immediately	$ 51.23
28	9781502		Retainer, Glass (8)		Appelez-nous	-
29	9750693		Channel, Heat		Appelez-nous	-
30	9781592		Baffle, Glass		Appelez-nous	-
