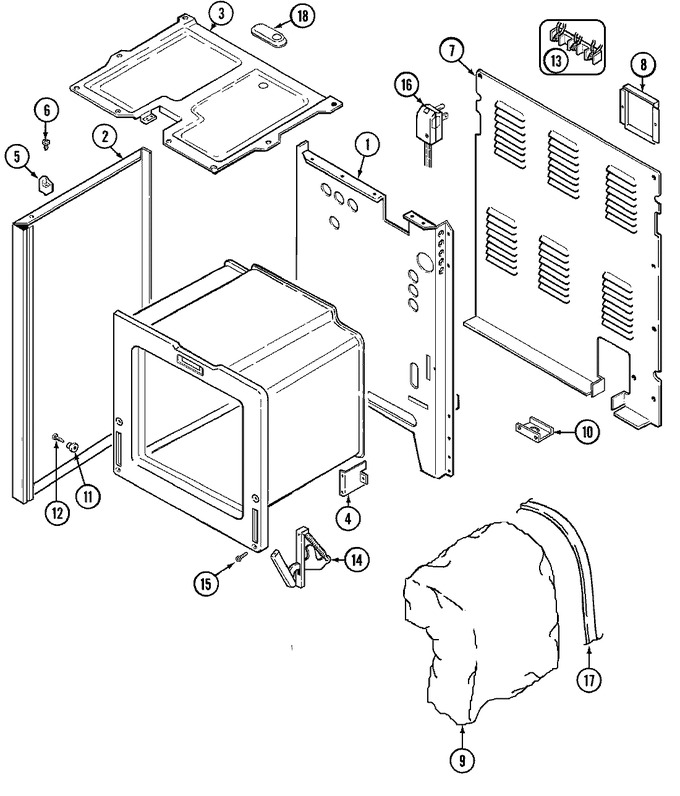

01 - Body
02 - Control Panel
03 - Door/drawer (series 01)
04 - Door/drawer (series 45)
05 - Oven/base
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F177-80 | Back, Main | 01 |
|
- | ||||
| 2 | 2618F099-74 | Panel, Side (alm) | 17 |
|
- | ||||
| 2 | 2618F085-74 | Panel, Side (alm) | 01 |
|
- | ||||
| 3 | 4011F208-19 | Box, Burner | 01 |
|
- | ||||
| 4 | 3807F400-51 | Support,oven Rear | 01 |
|
- | ||||
| 5 | 8010P088-60 | Spacer, Main Top (rt) | 01 |
|
- | ||||
| 5 | 8010P087-60 | Spacer, Main Top (lt) | 01 |
|
- | ||||
| 6 | WP74004005 | Screw (Replaces: 7118P013-60) | 01 |
|
$ 6.95 | ||||
| 7 | 4005F348-51 | Cover, Main Back Wire | 01 |
|
- | ||||
| 8 | 4005F376-51 | Cover, Terminal Block Acces | 01 |
|
- | ||||
| 9 | 4804F018-60 | Insulation, Wrap | 01 |
|
- | ||||
| 9 | 4804F017-60 | Insulation, Back | 01 |
|
- | ||||
| 10 | 3605F174-51 | Plate, Conduit Tubing | 01 |
|
- | ||||
| 11 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 01 |
|
$ 7.07 | ||||
| 12 | WPW10348409 | Screw (8abx13/16-zn) (Replaces: 74001449) | 01 |
|
Immediately | $ 6.98 | |||
| 13 | WPW10245259 | Block, Terminal (Replaces: 7401P039-60) | 01 |
|
Immediately | $ 31.65 | |||
| 14 | 7106P049-60 | Hinge, Door | 09 |
|
- | ||||
| 14 | 7106P033-60 | Hinge, Door | 01 |
|
- | ||||
| 14 | W10876639 | Hinge, Door (Replaces: 74003239) | 51 |
|
$ 129.21 | ||||
| 15 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 01 |
|
$ 4.29 | ||||
| 17 | 4820F001-59 | Strap, Retainer | 01 |
|
- | ||||
| 18 | 4005F350-45 | Cover Vent | 01 |
|
- |
