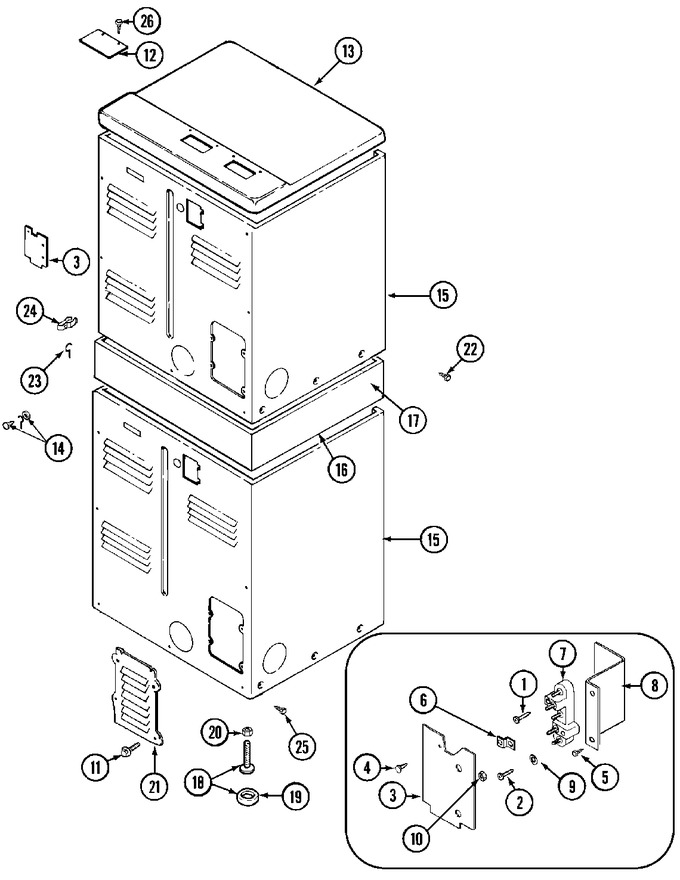

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	NLA		Screw, Ground Strap	10	Appelez-nous	-
002	Y310632		Screw, Terminal Block	10	Appelez-nous	-
003	Y312905		Cover, Terminal	10	Appelez-nous	-
004	Y313561		Screw, Terminal Cover	10			$ 5.27
005	W11164114		Screw, Terminal Bracket   (Replaces: Y312209)	10			$ 3.76
006	Y312184		Strap, Grounding	10	Appelez-nous	-
007	W11705611		Block, Terminal   (Replaces: 33001244)	10			$ 87.34
008	Y312904		Bracket, Terminal	10	Appelez-nous	-
009	WP311093		Washer, Brass   (Replaces: 311093)	10			$ 7.25
009	Y311270		Washer, Terminal Block	10			$ 8.75
010	WP112432		Nut, Terminal Block   (Replaces: 311484)	10			$ 7.16
011	WP489128		Screw, Access Cover   (Replaces: 216423)	10			$ 9.79
012	NLA		Plate, Top Cover	10	Appelez-nous	-
013	NLA		Cover, Top (wht)	10	Appelez-nous	-
014	NLA		Screw & Washer Assembly	10	Appelez-nous	-
015	NLA		Cabinet (lwr-wht)	10	Appelez-nous	-
015	Y310632		Screw, Cabinet	10	Appelez-nous	-
016	NLA		Support Assembly (wht)	10	Appelez-nous	-
017	310933		Fastener, Spacer Assembly	10	Appelez-nous	-
018	22003428		Leg, Adjustable (w/nut)---s   (Replaces: Y302699)	10		Immediately	$ 14.41
019	WP210684		Foot, Rubber   (Replaces: 210684)	10		Immediately	$ 14.09
020	WP210385		Nut, Adjustable Leg   (Replaces: 210385)	10			$ 6.26
021	Y312951		Cover, Access	10	Appelez-nous	-
022	NLA		Screw, Support	10	Appelez-nous	-
022	Y310632		Screw, Support	10	Appelez-nous	-
023	311155		Ground Wire	10			$ 8.77
024	301548		Clamp, Ground (w/screw)	10	Appelez-nous	-
024	313122		Screw, Clamp	10	Appelez-nous	-
025	213007		Screw, Cabinet Sides	10			$ 10.99
026	WP90767		Screw, Top Cover Plate   (Replaces: Y313559)	10		Immediately	$ 7.04
