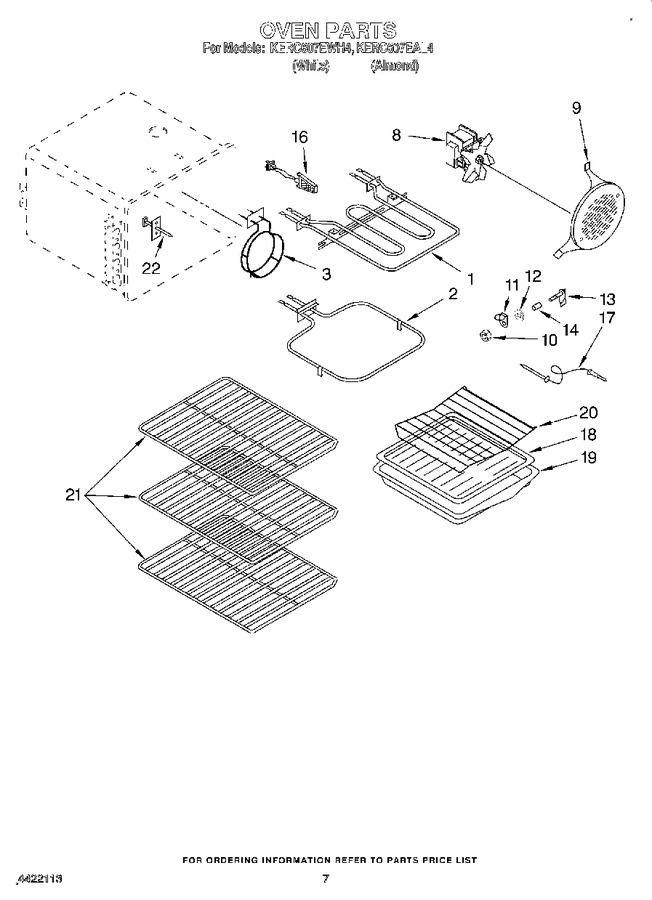

SELECT A DIAGRAM

01 - Cooktop


02 - Door And Drawer


03 - Oven Chassis


04 - Oven


05 - Rear Chassis


06 - Control Panel, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	UT513		Element, Broil   (Replaces: 9750967)			Immediately	$ 56.69
2	UB413		Element, Bake   (Replaces: 9750213)			Immediately	$ 47.24
3	340184		Screw (2) No.10-16 X 1 1/2				$ 12.10
3	9780269		Screw, Elements 8-32 X 3/8		Appelez-nous	-
3	WPW10280189		Element, Convection   (Replaces: 9751447)				$ 295.73
8	9780272		Screw (3) 10 X 1/2		Appelez-nous	-
8	9781543		Assembly, Fan				$ 142.09
9	9752670GM		Baffle, Convection		Appelez-nous	-
9	9780852		Screw, (2) 8 X 3/8		Appelez-nous	-
10	4167277		Lock-nut, Cvr.jack		Appelez-nous	-
11	4167266		Jack Cover		Appelez-nous	-
12	305289		Gasket		Appelez-nous	-
13	4173575		Receptacle, Probe		Appelez-nous	-
14	3179672		Spacer - Tubing		Appelez-nous	-
16	WP4448972		Oven Light   (Replaces: 4448972)				$ 98.46
16	3400401		Screw (2)		Appelez-nous	-
17	3150144		Probe				$ 106.70
18	4396923		Grill, Broiler   (Replaces: 9751481GM)			Immediately	$ 52.04
19	4396923		Pan, Broiler   (Replaces: 661400GM)			Immediately	$ 52.04
20	3181534		Rack, Roasting		Appelez-nous	-
21	9750823		Rack, Standard		Appelez-nous	-
22	3148440		Sensor		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
