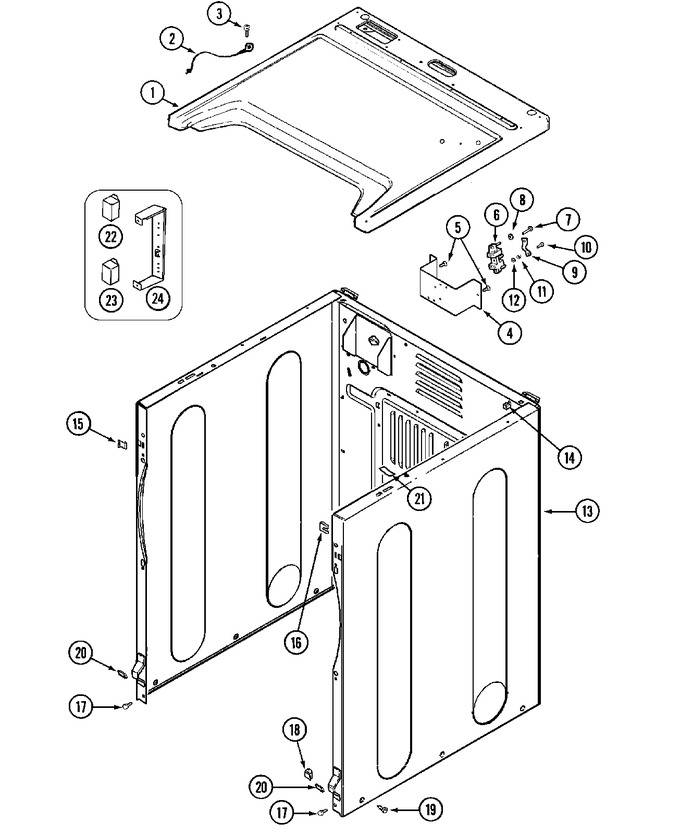

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 33001949 | Cover, Top (wht) | 10 |
|
- | ||||
| 001 | 33002633 | Cover, Top (wht-as Pk) | 36 |
|
- | ||||
| 001 | NLA | (alm) | 10 |
|
- | ||||
| 002 | 22001959 | Wire, Ground | 10 |
|
- | ||||
| 003 | WP489128 | Screw, Ground Wire (Replaces: 210186) | 10 |
|
$ 9.79 | ||||
| 004 | NLA | Bracket, Terminal Block----na | 10 |
|
- | ||||
| 005 | W11573574 | Screw, Terminal Block Bracket (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 006 | W11705611 | Block, Terminal (Replaces: 33001244) | 10 |
|
$ 87.34 | ||||
| 006 | 33002106 | Shield, Terminal Block | 10 |
|
- | ||||
| 007 | W11164114 | Screw, Terminal Block (Replaces: Y312209) | 10 |
|
$ 3.76 | ||||
| 008 | Y311270 | Washer, Terminal Block | 10 |
|
$ 8.75 | ||||
| 009 | Y312184 | Strap, Ground | 10 |
|
- | ||||
| 010 | NLA | Screw, Ground Strap | 10 |
|
- | ||||
| 011 | WP112432 | Nut, Terminal Block (Replaces: 311484) | 10 |
|
$ 7.16 | ||||
| 012 | WP311093 | Washer, Terminal Block (Replaces: 311093) | 10 |
|
$ 7.25 | ||||
| 013 | W11573574 | Screw, Hinge (Replaces: 22001995) | 36 |
|
Immediately | $ 12.62 | |||
| 013 | 22003367 | Hinge, Plastic | 36 |
|
- | ||||
| 013 | NLA | Cabinet (wht) | 10 |
|
- | ||||
| 014 | 310933 | Fastener | 10 |
|
- | ||||
| 015 | 22002049 | Clip | 10 |
|
$ 8.40 | ||||
| 016 | 213280 | Retainer, Shroud | 10 |
|
- | ||||
| 017 | W11573574 | Screw, Cabinet (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 018 | Y310376 | Clip, Wire Harness | 10 |
|
- | ||||
| 019 | 213007 | Screw, Cabinet | 10 |
|
$ 10.99 | ||||
| 019 | 213007 | Screw, Cabinet (truss) (Replaces: 22003409) | 36 |
|
$ 10.99 | ||||
| 020 | 22002239 | Clip, Lower Front Panel | 10 |
|
$ 5.84 | ||||
| 021 | 33001836 | Strap, Top Cover Support | 10 |
|
- | ||||
| 022 | 206824 | Relay, Spst 24vdc | 10 |
|
- | ||||
| 023 | 306398 | Relay, Heater | 10 |
|
$ 41.78 | ||||
| 023 | WP3177991 | Screw, Heater Relay (Replaces: Y251119) | 10 |
|
Immediately | $ 6.47 | |||
| 024 | WP90767 | Screw, Relay Bracket (Replaces: 211294) | 10 |
|
Immediately | $ 7.04 | |||
| 024 | 314627 | Bracket, Relay | 10 |
|
- | ||||
| 024 | WP90767 | Screw, Relay Bracket (Replaces: Y313559) | 10 |
|
Immediately | $ 7.04 |
