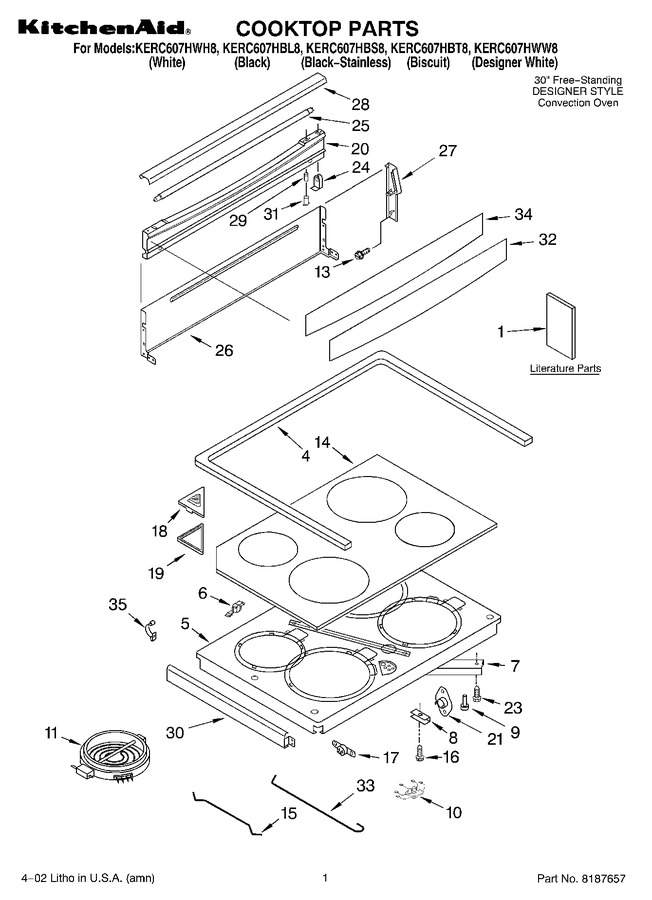

01 - Cooktop, Literature
02 - Door And Drawer
03 - Oven Chassis
04 - Oven
05 - Rear Chassis
06 - Control Panel
07 - Hidden Bake
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT9754287 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT9754373 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT9752775 | Literature Parts (template, Anti-tip) |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | LIT9755234 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT9754365 | Literature Parts (tech Sheet) |
|
- | |||||
| 4 | WP9780939 | Gasket, Cooktop (Replaces: 9754102) |
|
Immediately | $ 60.83 | ||||
| 5 | 9752892 | Support, Element |
|
- | |||||
| 6 | 9751629 | Bracket, Pivot |
|
- | |||||
| 6 | 9752003 | Washer, Pivot |
|
- | |||||
| 7 | 9781553 | Brace, Support |
|
- | |||||
| 8 | 9753691 | Clip, Support (4) |
|
- | |||||
| 9 | 238614 | Bumper, Rubber (4) (Replaces: 9750969) |
|
$ 72.68 | |||||
| 10 | 9781936 | Hot Light |
|
- | |||||
| 11 | W10823692 | Element, Surface (1000/2400w - Lf) (Replaces: 8523693) |
|
Immediately | $ 204.83 | ||||
| 11 | W10823698 | Element, Surface (1800w - Rf) (Replaces: 8523696) |
|
Immediately | $ 175.61 | ||||
| 11 | W10823699 | Element, Surface (1500w - Lr) (Replaces: 8523697) |
|
Immediately | $ 145.67 | ||||
| 11 | W10823697 | Element, Surface (2200w - Rr) (Replaces: 8523694) |
|
$ 326.21 | |||||
| 13 | 9780265 | Screw |
|
- | |||||
| 14 | 9753711CW | Cooktop, Ceran (white) |
|
- | |||||
| 14 | 9755005CW | Cooktop, Ceran (designer White) |
|
- | |||||
| 14 | 9753711CC | Cooktop, Ceran (biscuit) |
|
- | |||||
| 14 | 9753711CB | Cooktop, Ceran (black) |
|
- | |||||
| 15 | 9781459 | Rod, Large Ceran Element |
|
- | |||||
| 16 | 9751871 | Screw |
|
- | |||||
| 17 | 341196 | Thermo-disc |
|
$ 33.17 | |||||
| 17 | 9780265 | Screw, (4) |
|
- | |||||
| 18 | 9751800 | Cover, Vent |
|
- | |||||
| 19 | 9751841 | Gasket, Vent Cover |
|
- | |||||
| 20 | 9781896GC | Backsplash (biscuit) |
|
- | |||||
| 20 | 9781896GW | Backsplash (white) |
|
- | |||||
| 20 | 9781896GB | Backsplash (black) |
|
- | |||||
| 21 | WP9759944 | Bimetal (Replaces: 9751984) |
|
Immediately | $ 121.57 | ||||
| 23 | 9780272 | Screw |
|
- | |||||
| 24 | 9752760 | Receptacle, Light |
|
- | |||||
| 25 | WP95292 | Light, Fluorescent (Replaces: 422581) |
|
Immediately | $ 121.45 | ||||
| 26 | 9751664 | Cover, Backsplash |
|
- | |||||
| 27 | 9781885FW | Endcap, Backsplash (right Hand) (white) |
|
- | |||||
| 27 | 9781884FC | Endcap, Backsplash (right Hand) (biscuit) |
|
- | |||||
| 27 | 9781884FB | Endcap, Backsplash (right Hand) (black) |
|
- | |||||
| 27 | 9781884FW | Endcap, Backsplash (right Hand) (white) |
|
- | |||||
| 27 | 9781885FC | Endcap, Backsplash (right Hand) (biscuit (left Hand)) |
|
- | |||||
| 27 | 9781885FB | Endcap, Backsplash (right Hand) (black) |
|
- | |||||
| 28 | 9751632 | Cover, Light (black) |
|
- | |||||
| 28 | 9753320 | Cover, Light (biscuit) |
|
- | |||||
| 28 | 9751327 | Cover, Light (white) |
|
- | |||||
| 29 | 9781118 | Starter, Light |
|
- | |||||
| 30 | 9751276PB | Trim, Cooktop (right Hand) (black) |
|
- | |||||
| 30 | 9751276PC | Trim, Cooktop (right Hand) (biscuit) |
|
- | |||||
| 30 | 9751275PW | Trim, Cooktop (right Hand) (white) |
|
- | |||||
| 30 | 9751275PB | Trim, Cooktop (right Hand) (black) |
|
- | |||||
| 30 | 9751275PC | Trim, Cooktop (right Hand) (biscuit (left Hand)) |
|
- | |||||
| 30 | 9751276PW | Trim, Cooktop (right Hand) (white) |
|
- | |||||
| 31 | 9750866 | Starter, Holder |
|
- | |||||
| 32 | 9782021 | Glass, Backsplash (clear) |
|
- | |||||
| 32 | 9781154 | Glass, Backsplash ((white)) |
|
- | |||||
| 33 | 9781460 | Rod, Small Ceran Element |
|
- | |||||
| 34 | 9753291 | Panel, Backguard (stainless) |
|
- | |||||
| 35 | WP98997 | Clip, Wire (Replaces: 98997) |
|
$ 9.98 |
