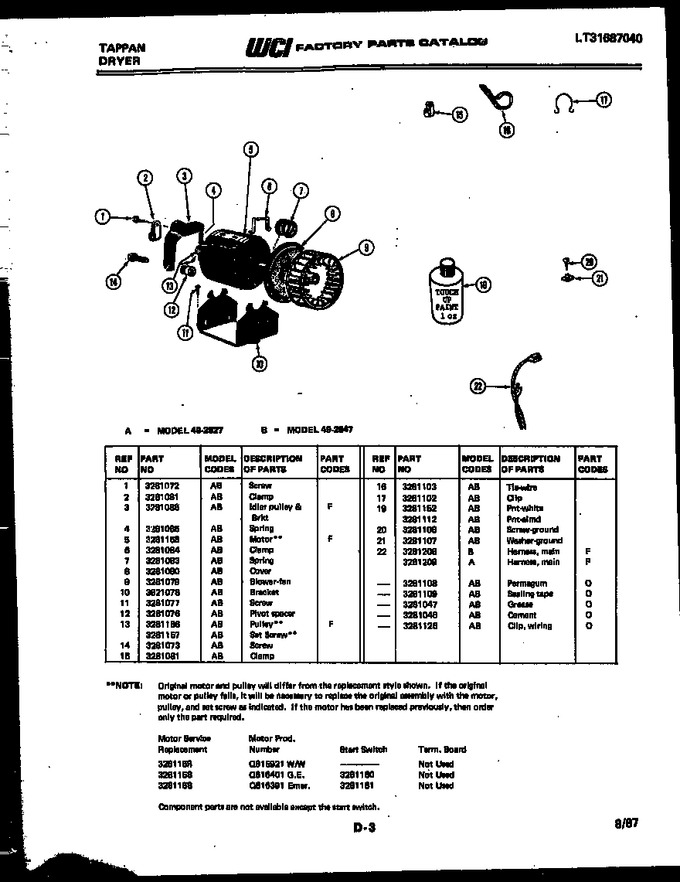

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3281072		Screw		Appelez-nous	-
2	3281081		Clamp		Appelez-nous	-
3	3281086		Idler Pulley & Brkt		Appelez-nous	-
4	3281085		Spring		Appelez-nous	-
5	3281158		Motor (original Motor And Pulley Will Differ From The Re		Appelez-nous	-
6	3281084		Clamp		Appelez-nous	-
7	3281083		Spring		Appelez-nous	-
8	3281080		Cover		Appelez-nous	-
9	3281079		Blower Fan		Appelez-nous	-
10	3821078		Bracket		Appelez-nous	-
11	3281077		Screw		Appelez-nous	-
12	3281076		Pivot Spacer		Appelez-nous	-
13	3281156		Pulley (original Motor And Pulley Will Differ From The R		Appelez-nous	-
14	3281073		Screw		Appelez-nous	-
15	3281081		Clamp		Appelez-nous	-
16	3281103		Tie-wire		Appelez-nous	-
17	3281102		Clip		Appelez-nous	-
19	3281112		Pnt-almd		Appelez-nous	-
19	3281152		Pnt-white		Appelez-nous	-
20	3281106		Screw-ground		Appelez-nous	-
21	3281107		Washer Ground		Appelez-nous	-
22	3281209		Harness, Main		Appelez-nous	-
*55483	3281109		Sealing Tape		Appelez-nous	-
*55483	3281108		Permagum		Appelez-nous	-
*55484	3281047		Grease		Appelez-nous	-
*55484	3281046		Cement		Appelez-nous	-
*55485	3281126		Clip, Wiring		Appelez-nous	-
13A	3281157		Set Screw (original Motor And Pulley Will Differ From The Replacement Style Shown. If The Original		Appelez-nous	-
