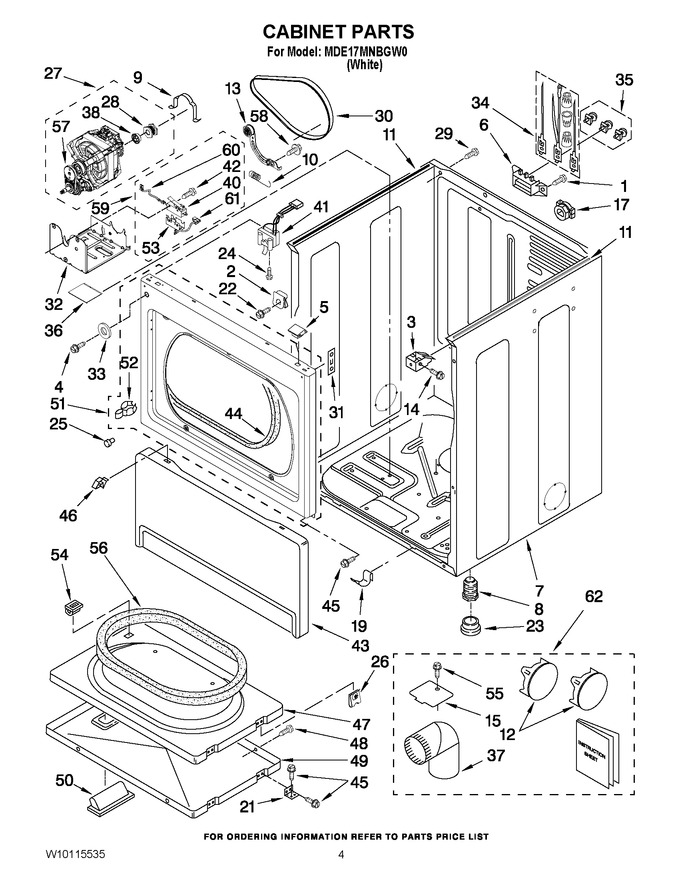

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.08
2	WPW10131123		Nut, No.8 U Type   (Replaces: W10131123)				$ 6.94
3	3391846		Clip, Front Panel (2)				$ 19.04
4	WP3400077		Screw, 10-16 X 1/2   (Replaces: 3400077)				$ 6.25
5	WP345670		Lock, Top   (Replaces: 345670)			Immediately	$ 6.93
6	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 20.72
7	W11417441		Cabinet   (Replaces: 8310656)				$ 377.29
8	49621		Foot, Dryer (plastic)   (Replaces: 3392100)			Immediately	$ 7.70
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 7.05
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 22.11
11	WP8318396A		Foam-seal   (Replaces: 8318396)				$ 34.04
12	W10470674		Plug, Multivent   (Replaces: 697750)			Immediately	$ 68.99
13	WPW10344192		Idler Assembly   (Replaces: W10141380)			Immediately	$ 81.06
14	W10223793		Screw, 10-16 X 1		Appelez-nous	-
15	WPW10354249		Plate, Cover   (Replaces: 3394331)				$ 8.06
17	W11704629		Clip, Strain Relief   (Replaces: 8316644)		Appelez-nous	-
19	WP297092		Clip (2)   (Replaces: 297092)			Immediately	$ 7.42
21	W11175815		Hinge And Pin (2)   (Replaces: 3389247)				$ 73.27
22	WPW10131119		Screw, 8-18 X 5/16   (Replaces: W10131119)				$ 6.26
23	WP3391943		Boot, Foot   (Replaces: 3391943)				$ 7.04
24	W10080540		Screw, 6-20 X 7/8		Appelez-nous	-
25	693152		Bumper				$ 9.86
26	3389249		Nut, ``u`` (4)		Appelez-nous	-
27	W10416574		Motor Assembly (50 Hz.)   (Replaces: W10142402)				$ 299.25
28	W10167237		Pulley		Appelez-nous	-
29	W10850756		Screw, 10-32 X 1/2   (Replaces: 8533974)				$ 6.98
30	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 39.60
31	WP3390902		Clip, Door Hinge (2)   (Replaces: 3390902)				$ 10.00
32	W11676491		Bracket, Motor   (Replaces: W10135695)				$ 113.26
33	3391948		Washer		Appelez-nous	-
34	279318		Terminal, Brass & Tinned (3) (includes Ill. 35)			Immediately	$ 90.89
35	279393		Terminal-block Screw Kit (for Terminal Block			Immediately	$ 42.63
36	W11113654		Sound Pad, Motor   (Replaces: W10212660)				$ 19.96
37	279731		4``-90 Elbow		Appelez-nous	-
38	WP3393657		Restainer, Belt   (Replaces: 3393657)			Immediately	$ 119.21
40	WP8564010		Switch-belt   (Replaces: 8564010)				$ 89.24
41	WPW10237959		Door Switch Assembly   (Replaces: W10237959)			Immediately	$ 50.08
42	3400934		Assembly, Screw & Insulator		Appelez-nous	-
43	WP3406797		Panel, Toe   (Replaces: 697215)				$ 214.50
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 28.28
45	W10080310		Screw, 8-18 X 1/2		Appelez-nous	-
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 7.61
47	280083		Door, Rear   (Replaces: 3392563)				$ 258.32
48	W10080300		Screw, 8-18 X 3/8		Appelez-nous	-
49	W11663440		Door, Front   (Replaces: 3387872)				$ 233.43
50	W11209427		Handle, Door   (Replaces: W10116360)			Immediately	$ 68.18
51	W10242810		Front Panel   (Replaces: W10192882)				$ 324.96
52	W10080240		Strike, Door		Appelez-nous	-
53	8564011		Lever-bracket				$ 16.35
54	279570		Catch, Door Assembly   (Replaces: 3392538)			Immediately	$ 8.00
55	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.01
56	WP3390735		Seal, Door   (Replaces: 3390735)				$ 117.54
57	WP3405160		Poly V, Belt   (Replaces: 3405160)			Immediately	$ 31.71
58	WP3389420		Screw   (Replaces: 3389420)				$ 7.22
59	W11236387		Switch, Assembly   (Replaces: W10259136)		Appelez-nous	-
60	W10167613		Wire, Belt Switch		Appelez-nous	-
61	8539892		Wire Motor (to Belt Switch)		Appelez-nous	-
NI	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 68.99
NI	49621		Foot - Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 7.70
