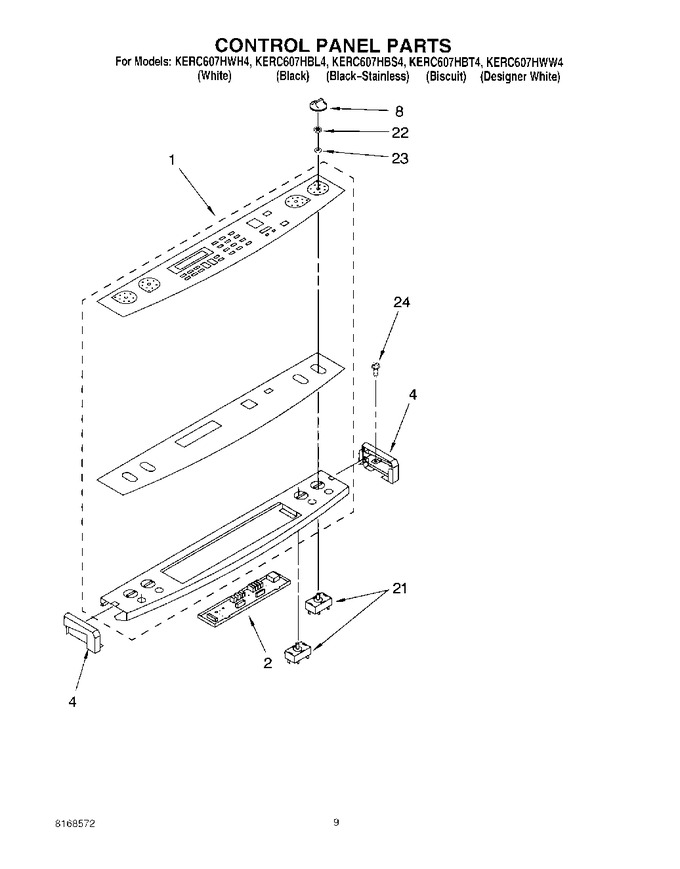

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9781971CW		Console, Glass (white)		Appelez-nous	-
1	9781971CB		Console, Glass (black)		Appelez-nous	-
1	9781971CC		Console, Glass (biscuit)		Appelez-nous	-
1	9781977CB		Console, Glass (black Stainless)		Appelez-nous	-
2	9781980CP		Timer, Electronic   (Replaces: 9781980)		Appelez-nous	-
2	9780271		Screw, (2)		Appelez-nous	-
4	9751280FW		End Cap (white, Right)		Appelez-nous	-
4	9751279FW		End Cap (left Hand) (white)		Appelez-nous	-
4	9751280FC		End Cap (biscuit, Right)		Appelez-nous	-
4	9751280FB		End Cap (black, Right)		Appelez-nous	-
4	9781488		End Cap (left Hand) (spacer (2))		Appelez-nous	-
4	9751279FC		End Cap (biscuit, Left)		Appelez-nous	-
4	9751279FB		(end Cap Left Hand) (black)		Appelez-nous	-
8	WP9750372FC		Knobs, Control (biscuit)   (Replaces: 9750372FC)			Immediately	$ 6.47
8	WP9750372FW		Knobs, Control (white)   (Replaces: 9750372FW)				$ 17.99
8	WP9750372FF		Knobs, Control (black)   (Replaces: 9750372FF)			Immediately	$ 18.86
21	9751363		Switch, Infinite (1800w, Rf)				$ 71.70
21	8203536		Switch, Infinite (1000-2400w, Lf)   (Replaces: 9751758)			Immediately	$ 183.74
21	9751362		Switch, Infinite (2200w, Rr)				$ 72.53
21	9751364		Switch, Infinite (1500w, Lr)				$ 72.83
22	9751711		Nut, Mounting (dual Element)		Appelez-nous	-
22	00422610		Nut, Mounting (single Element)   (Replaces: 422617)				$ 139.96
23	9781455		Seal, Switch (4)		Appelez-nous	-
24	9780265		Screw		Appelez-nous	-
