New Model Search:

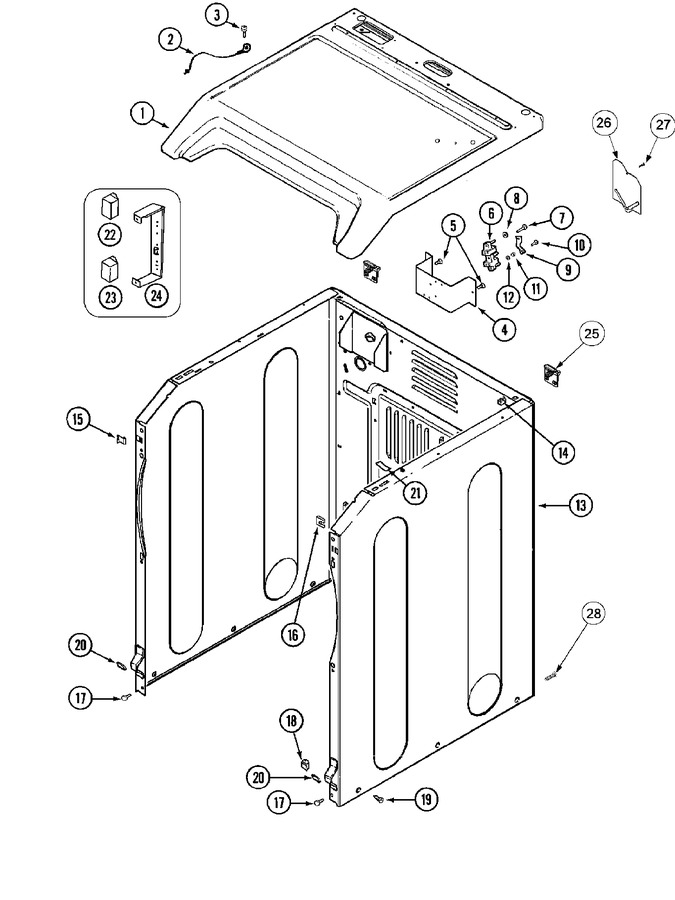

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 33002627 | Cover, Top (wht-as Pk) | 10 |
|
- | ||||
| 002 | 205810 | Wire, Ground | 10 |
|
- | ||||
| 003 | WP489399 | Screw (Replaces: 211252) | 10 |
|
$ 6.26 | ||||
| 004 | NLA | Bracket, Terminal Block----na | 10 |
|
- | ||||
| 005 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 006 | 33002106 | Shield, Terminal Block | 10 |
|
- | ||||
| 006 | W11705611 | Block, Terminal (export) (Replaces: 33002259) | 10 |
|
$ 87.34 | ||||
| 007 | W11164114 | Screw, No.10-24 X 3/4 Inch-----o (Replaces: Y312209) | 10 |
|
$ 3.76 | ||||
| 008 | Y311270 | Washer, Terminal Block | 10 |
|
$ 8.75 | ||||
| 009 | Y312184 | Strap, Ground | 10 |
|
- | ||||
| 010 | NLA | Screw----na | 10 |
|
- | ||||
| 011 | WP112432 | Nut, Terminal Block (Replaces: 311484) | 10 |
|
$ 7.16 | ||||
| 012 | 33002388 | Washer (hdwr Pkg) | 10 |
|
- | ||||
| 013 | 22003639 | Cabinet Assy. (wht As Pk) | 10 |
|
- | ||||
| 014 | 33002194 | Nut, Speed | 10 |
|
- | ||||
| 015 | 22002049 | Clip | 10 |
|
$ 8.40 | ||||
| 016 | 213280 | Front Panel Bracket/fastener | 10 |
|
- | ||||
| 017 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 018 | 22003298 | Retainer, Wire | 10 |
|
$ 7.71 | ||||
| 018 | Y310376 | Clip, Wire Harness | 10 |
|
- | ||||
| 019 | 213007 | Screw, Cabinet | 10 |
|
$ 10.99 | ||||
| 020 | 22002239 | Clip, Lower Front Panel | 10 |
|
$ 5.84 | ||||
| 021 | 33001836 | Strap, Top Cover Support | 10 |
|
- | ||||
| 022 | 206824 | Relay, Spst 24vdc | 10 |
|
- | ||||
| 023 | WP3177991 | Screw (Replaces: 22001078) | 10 |
|
Immediately | $ 6.47 | |||
| 023 | 306398 | Relay - Spst Heater | 10 |
|
$ 41.78 | ||||
| 024 | 314627 | Relay Bracket | 10 |
|
- | ||||
| 024 | WP3177991 | Screw (Replaces: Y251119) | 10 |
|
Immediately | $ 6.47 | |||
| 025 | 22003367 | Hinge, Plastic | 10 |
|
- | ||||
| 026 | 33001795 | Cover, Terminal Block | 10 |
|
- | ||||
| 027 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 028 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 029 | 216183 | Grommet, Cord Export | 10 |
|
- | ||||
| 029 | 22003540 | Cord, Power (export) |
|
- | |||||
| 029 | 22003705 | Adapter, Cord Export |
|
- |
