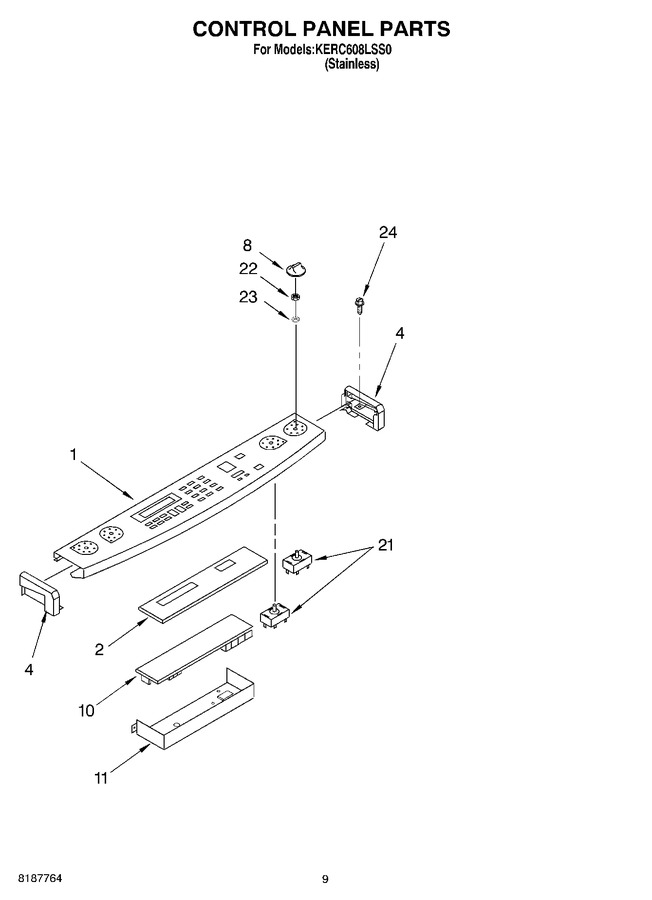

01 - Cooktop Parts


02 - Door And Drawer Parts


03 - Oven Chassis Parts


04 - Oven Parts


05 - Rear Chassis Parts


06 - Control Panel Parts


07 - Hidden Bake Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9782419CB		Console, Glass				$ 305.35
2	9780271		Screw, (2)		Appelez-nous	-
2	9782455		Board, Display				$ 483.74
4	9781488		End Cap (spacer (2))		Appelez-nous	-
4	9751279FB		End Cap (left Hand)		Appelez-nous	-
4	9751280FB		End Cap (right Hand)		Appelez-nous	-
8	WP9750372FF		Knobs, Control   (Replaces: 9750372FF)			Immediately	$ 18.86
10	9782437		Board, Power				$ 251.61
11	9755021		Shield, Control Panel		Appelez-nous	-
21	9751363		Switch, Infinite (1800w, Rf)				$ 71.70
21	WP9755175		Switch, Infinite (1000-2400w, Lf)   (Replaces: 9755175)				$ 118.76
21	9751364		Switch, Infinite (1500w, Lr)				$ 72.83
21	9751362		Switch, Infinite (2200w, Rr)				$ 72.53
22	00422610		Nut, Mounting (single Element)   (Replaces: 422617)				$ 139.96
23	9781455		Seal, Switch (4)		Appelez-nous	-
24	9780265		Screw		Appelez-nous	-
