Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4162215 Screw Appelez-nous -
2 4171420 Upper Mounting Panel Assembly Appelez-nous -
3 4171421 Filler (upper Panel) Appelez-nous -
4 4159439 Screw, 6 X 1/4 Appelez-nous -
5 4171395 Side Trim (upper Panel) Appelez-nous -
6 4162686 Side Trim (lower Panel) Appelez-nous -
8 4162737 Lower Mounting Panel Assembly Appelez-nous -
9 4162734 Filler (lower Panel) Appelez-nous -
10 4159494 Lock Washer Appelez-nous -
11 WP693304 Screw, 10 X 1/2   (Replaces: 4159468) Special Order $ 7.04

12 4171198 Panel Insert Kits (stainless Steal (optional)) Special Order $ 139.24

12 4171201 Panel Insert Kits (harvest Gold/ Onyx Black) Appelez-nous -
12 4171200 Panel Insert Kits (almond/white) Appelez-nous -
19 4162735 Grommet, Panel (10) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

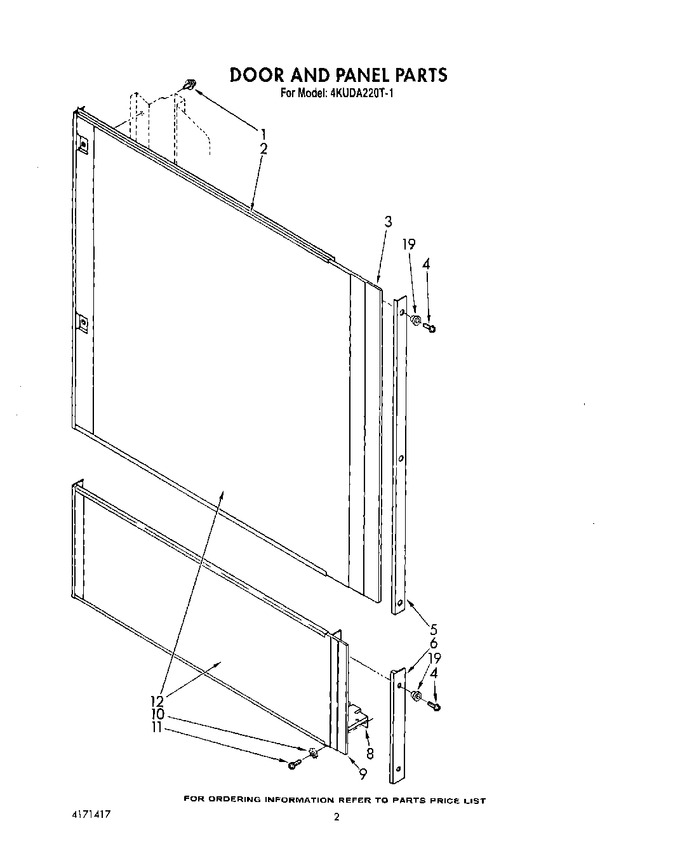

Diagram for 4KUDA220T1
