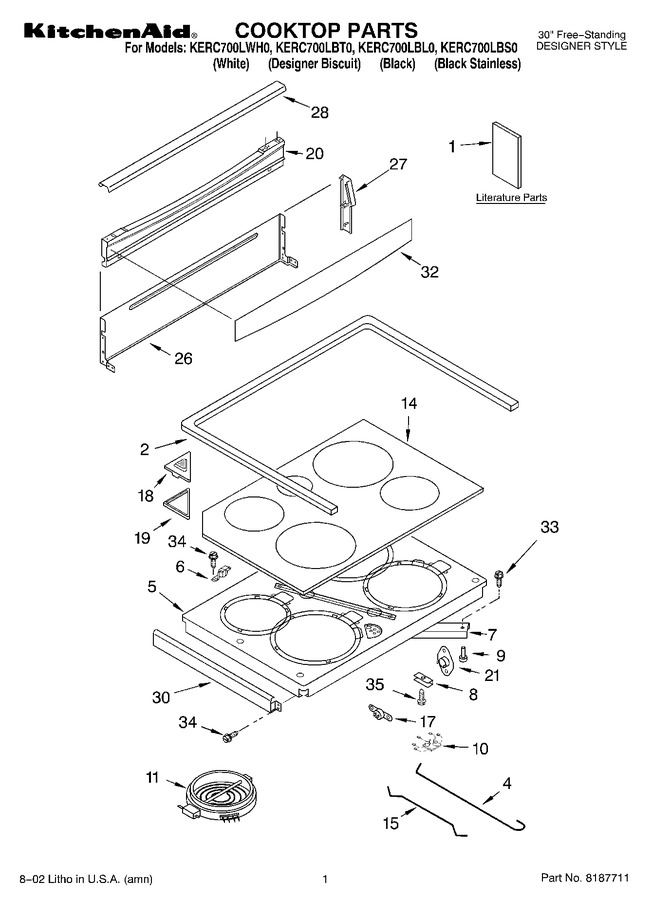

01 - Cooktop, Literature
02 - Door And Drawer
03 - Oven Chassis
04 - Oven
05 - Rear Chassis
06 - Control Panel, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT9755234 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT9754287 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT9754365 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT9754373 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | LIT9752775 | Literature Parts (template, Anti-tip) |
|
- | |||||
| 2 | 9781614 | Gasket, Silicone |
|
$ 47.02 | |||||
| 4 | 9781459 | Rod, Large Element |
|
- | |||||
| 5 | 9752892 | Support, Element |
|
- | |||||
| 6 | 9751629 | Bracket, Pivot |
|
- | |||||
| 6 | 9752003 | Washer, Pivot |
|
- | |||||
| 7 | 9781553 | Brace, Support |
|
- | |||||
| 8 | 9753691 | Clip, Support (4) |
|
- | |||||
| 9 | 238614 | Bumper, Rubber (Replaces: 9750969) |
|
$ 72.68 | |||||
| 10 | 9781936 | Hot Light |
|
- | |||||
| 11 | W10823697 | Element, Surface (2200w - Rr) (Replaces: 8523694) |
|
$ 326.21 | |||||
| 11 | W10823699 | Element, Surface (1500w - Lr) (Replaces: 8523697) |
|
Immediately | $ 145.67 | ||||
| 11 | W10823692 | Element, Surface (1000/2400w - Lf) (Replaces: 8523693) |
|
Immediately | $ 204.83 | ||||
| 11 | W10823698 | Element, Surface (1800w - Rf) (Replaces: 8523696) |
|
Immediately | $ 175.61 | ||||
| 14 | 9753711CW | Cooktop, Ceran (white) |
|
- | |||||
| 14 | 9753711CB | Cooktop, Ceran (black) |
|
- | |||||
| 14 | 9753711CC | Cooktop, Ceran (biscuit) |
|
- | |||||
| 15 | 9781460 | Rod, Small Element |
|
- | |||||
| 17 | 341196 | Thermo-disc |
|
$ 33.17 | |||||
| 18 | 9751800 | Cover, Vent |
|
- | |||||
| 19 | 9751841 | Gasket, Vent Cover |
|
- | |||||
| 20 | 9781896GW | Backsplash (white) |
|
- | |||||
| 20 | 9781896GC | Backsplash (biscuit) |
|
- | |||||
| 20 | 9781896GB | Backsplash (black) |
|
- | |||||
| 21 | WP9759944 | Bimetal (Replaces: 9751984) |
|
Immediately | $ 121.57 | ||||
| 26 | 9751664 | Cover, Backsplash |
|
- | |||||
| 27 | 9781884FC | Endcap, Backsplash Right (biscuit) |
|
- | |||||
| 27 | 9781884FW | Endcap, Backsplash Right (white) |
|
- | |||||
| 27 | 9781885FB | Endcap, Backsplash Right (black Left) |
|
- | |||||
| 27 | 9781885FC | Endcap, Backsplash Right (biscuit) |
|
- | |||||
| 27 | 9781885FW | Endcap, Backsplash Right (white) |
|
- | |||||
| 27 | 9781884FB | Endcap, Backsplash Right (black) |
|
- | |||||
| 28 | 9753320 | Cover, Light (biscuit) |
|
- | |||||
| 28 | 9751327 | Cover, Light (white) |
|
- | |||||
| 28 | 9751632 | Cover, Light (black) |
|
- | |||||
| 30 | 9751275PB | Trim, Cooktop Right (black Left) |
|
- | |||||
| 30 | 9751276PW | Trim, Cooktop Right (white) |
|
- | |||||
| 30 | 9751276PC | Trim, Cooktop Right (biscuit) |
|
- | |||||
| 30 | 9751276PB | Trim, Cooktop Right (black) |
|
- | |||||
| 30 | 9751275PW | Trim, Cooktop Right (white) |
|
- | |||||
| 30 | 9751275PC | Trim, Cooktop Right (biscuit) |
|
- | |||||
| 32 | 9781987 | Glass, Backsplash (stainless) |
|
- | |||||
| 32 | 9753910CW | Glass, Backsplash (white) |
|
$ 142.05 | |||||
| 32 | 9753910CC | Glass, Backsplash (biscuit) |
|
- | |||||
| 32 | 9753910CB | Glass, Backsplash (black) |
|
- | |||||
| 33 | 9780272 | Screw, 10-16 X 1/2 |
|
- | |||||
| 34 | 9780265 | Screw, 10-16 X 3/8 |
|
- | |||||
| 35 | 9751871 | Screw, 10-16 X 1 |
|
- |
