01 - Control Panel
02 - Cabinet-front
03 - Door
04 - Cabinet-rear
05 - Tumbler
06 - Heater
07 - Motor Drive
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:

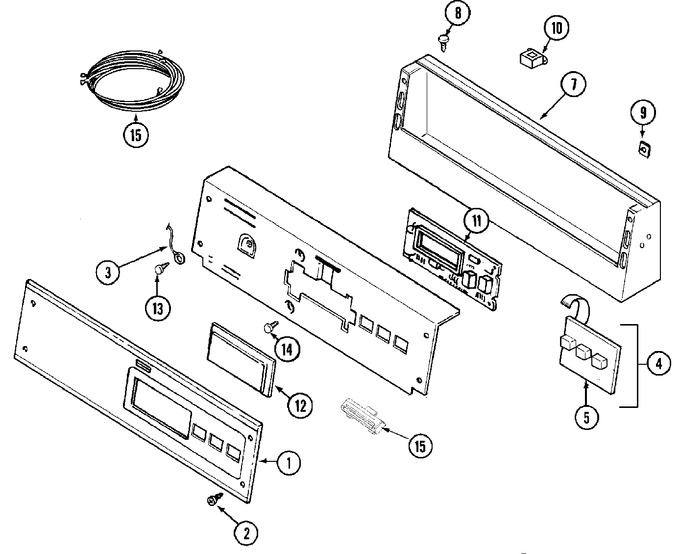

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 33002669 | Control Panel | 10 |
|
- | ||||
| 002 | WPW10131119 | Screw, Control Panel (Replaces: 215506) | 10 |
|
$ 6.26 | ||||
| 003 | 22001959 | Wire, Ground | 10 |
|
- | ||||
| 004 | W10756178 | Screw, Switch (Replaces: 215527) | 10 |
|
$ 5.39 | ||||
| 004 | 306694 | Control Switch Assembly | 10 |
|
$ 73.51 | ||||
| 005 | WPW10424308 | Pushbutton, Control Switch (Replaces: 215517) | 10 |
|
Immediately | $ 18.38 | |||
| 006 | 22001511 | Deflector, Water (w/adhesive) | 10 |
|
- | ||||
| 006 | 33001956 | Bracket, Back (wht) | 10 |
|
- | ||||
| 007 | 22003101 | Console (wht) | 10 |
|
- | ||||
| 008 | WP489128 | Screw, Console (Replaces: 22001996) | 10 |
|
$ 9.79 | ||||
| 009 | 215003 | Clip, Screw | 10 |
|
- | ||||
| 010 | 211251 | Screw, Transformer | 10 |
|
- | ||||
| 010 | 22001419 | Nut (elastic) | 10 |
|
- | ||||
| 010 | WPW10131839 | Transformer (Replaces: 22001960) | 10 |
|
Immediately | $ 120.20 | |||
| 011 | 33001204 | Standoff, Circuit Board | 10 |
|
- | ||||
| 011 | WPW10130081 | Board Assy., Circuit (Replaces: 33001746) | 10 |
|
$ 277.17 | ||||
| 011 | M0282005 | Locknut (Replaces: 912077) | 10 |
|
$ 7.07 | ||||
| 012 | WPW10131114 | Cover, Display (Replaces: 22001962) | 10 |
|
$ 42.79 | ||||
| 013 | WP489399 | Screw, Ground Wire (Replaces: 211252) | 10 |
|
$ 6.26 | ||||
| 014 | 215526 | Screw, Control Board | 10 |
|
- | ||||
| 015 | WPW10131115 | Bezel (Replaces: 22001976) | 10 |
|
$ 7.63 | ||||
| 016 | 33001856 | Reader Harness Kit (16``) | 10 |
|
- | ||||
| 017 | 22001973 | Harness, Pr Service | 10 |
|
- | ||||
| 018 | 33002671 | Use & Care Manual |
|
- |
