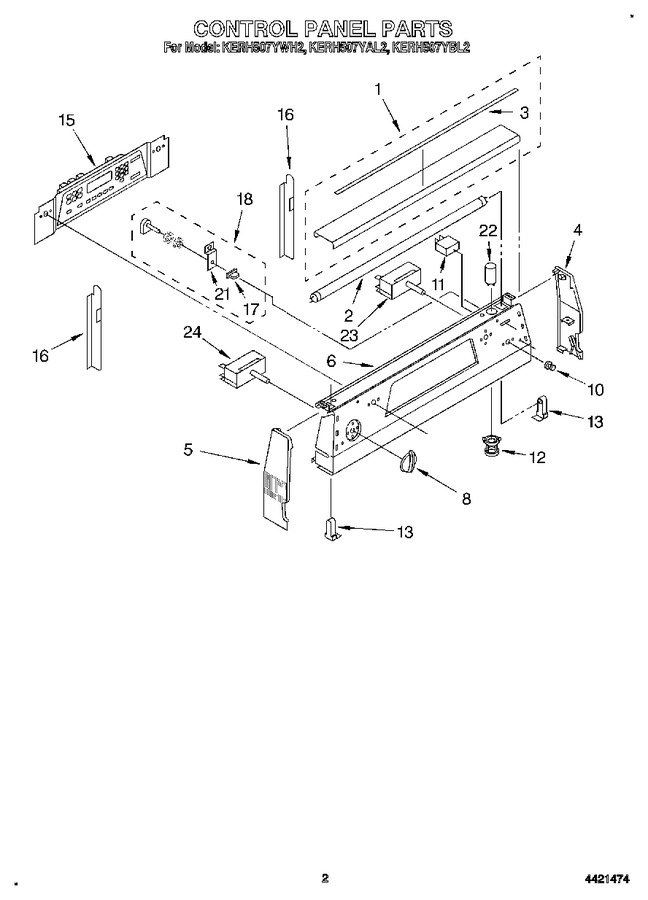

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9780580 | Lamp Cover (white) |
|
- | |||||
| 1 | 9780734 | Lamp Cover (black) |
|
- | |||||
| 1 | 9780581 | Lamp Cover (almond) |
|
- | |||||
| 2 | WP95292 | Light, Fluorescent (Replaces: 422581) |
|
Immediately | $ 121.45 | ||||
| 3 | 9780731 | Lamp Cover Insert (black) |
|
- | |||||
| 3 | 9780295 | Lamp Cover Insert (white) |
|
- | |||||
| 3 | 9780332 | Lamp Cover Insert (almond) |
|
- | |||||
| 4 | 4211933 | End Cap R.h. (almond) |
|
- | |||||
| 4 | 4211934 | End Cap R.h. (white) |
|
- | |||||
| 4 | 9780265 | End Cap R.h. (screw, (2) 10 X 3/8) |
|
- | |||||
| 4 | 4211935 | End Cap R.h. (black) |
|
- | |||||
| 5 | 4211936 | End Cap L.h. (almond) |
|
- | |||||
| 5 | 4211937 | End Cap L.h. (white) |
|
- | |||||
| 5 | 9780265 | End Cap L.h. (screw, (2) 10 X 3/8) |
|
- | |||||
| 5 | 4211938 | End Cap L.h. (black) |
|
- | |||||
| 6 | 9780726 | Panel, Control (black) |
|
- | |||||
| 6 | 9780329 | Panel, Control (almond) |
|
- | |||||
| 6 | 9780293 | Panel, Control (white) |
|
- | |||||
| 6 | 9780852 | Panel, Control (screw, (2) 8 X 3/8) |
|
- | |||||
| 8 | 4211913 | Knobs, Control (almond) |
|
$ 19.39 | |||||
| 8 | WP9750372FW | Knobs, Control (white) (Replaces: 4211909) |
|
$ 17.99 | |||||
| 8 | 4211901 | Knobs, Control (black) |
|
- | |||||
| 10 | WP9750343 | Indicator Lens (Replaces: 9750343) |
|
Immediately | $ 5.14 | ||||
| 11 | 9750964 | Light Module |
|
- | |||||
| 12 | 9750866 | Starter, Holder |
|
- | |||||
| 13 | 9750273 | Receptacle, Lamp |
|
- | |||||
| 15 | 9750917 | Oven Control Assembly (black) |
|
- | |||||
| 15 | 9750700 | Oven Control Assembly (white) |
|
- | |||||
| 15 | 9750699 | Oven Control Assembly (almond) |
|
- | |||||
| 16 | 9780655 | Brace, Control Pnl |
|
- | |||||
| 17 | 4212112 | Button, Light (white) |
|
- | |||||
| 17 | 4212111 | Button, Light (black) |
|
- | |||||
| 17 | 4212113 | Button, Light (almond) |
|
- | |||||
| 18 | 9751110 | Switch, Light |
|
- | |||||
| 21 | 9750721 | Bracket, Switch |
|
- | |||||
| 22 | 9781118 | Starter, Light |
|
- | |||||
| 23 | WP9750639 | Infinite Switch 1700w, Lr-rf (Replaces: 9750639) |
|
Immediately | $ 137.39 | ||||
| 24 | 9780268 | Screw (8) 8-32 X 3/16 |
|
- | |||||
| 24 | WP9750641 | 2400w, Lf-rr (Replaces: 9750641) |
|
Immediately | $ 92.72 |
