01 - Blower
02 - Cabinet
03 - Door
04 - Front Panel - Drum
05 - Supplemental Information
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:

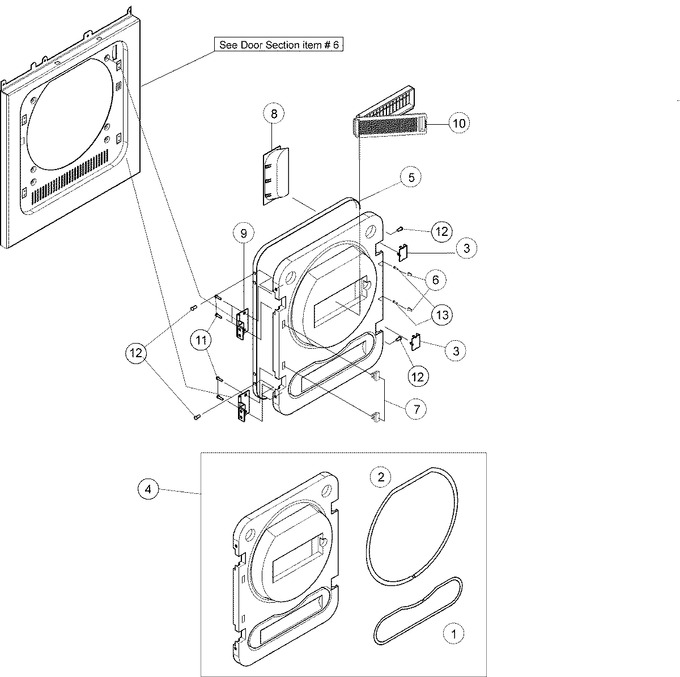

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 35001041 | Seal-door | 10 |
|
$ 74.82 | ||||
| 2 | 35001042 | Seal-door | 10 |
|
$ 50.17 | ||||
| 3 | 35001043 | Cover-hinge | 10 |
|
- | ||||
| 4 | 35001072 | Assy-cover Door | 10 |
|
- | ||||
| 5 | 35001202 | Door Front | 10 |
|
- | ||||
| 6 | 35001051 | Lever-door | 10 |
|
$ 5.38 | ||||
| 7 | 35001047 | Cover-screw | 10 |
|
- | ||||
| 8 | WP35001048 | Handle-door (Replaces: 35001048) | 10 |
|
$ 67.90 | ||||
| 9 | 35001049 | Assy-hinge | 10 |
|
- | ||||
| 10 | WP35001050 | Assy-filter (lint) (Replaces: 35001050) | 10 |
|
Immediately | $ 74.21 | |||
| 11 | W11233072 | Screw-tapping (Replaces: 34001184) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | 34001187 | Screw-tapping | 10 |
|
- | ||||
| 13 | 6002-000525 | Screw-tapping | 10 |
|
$ 0.85 |
