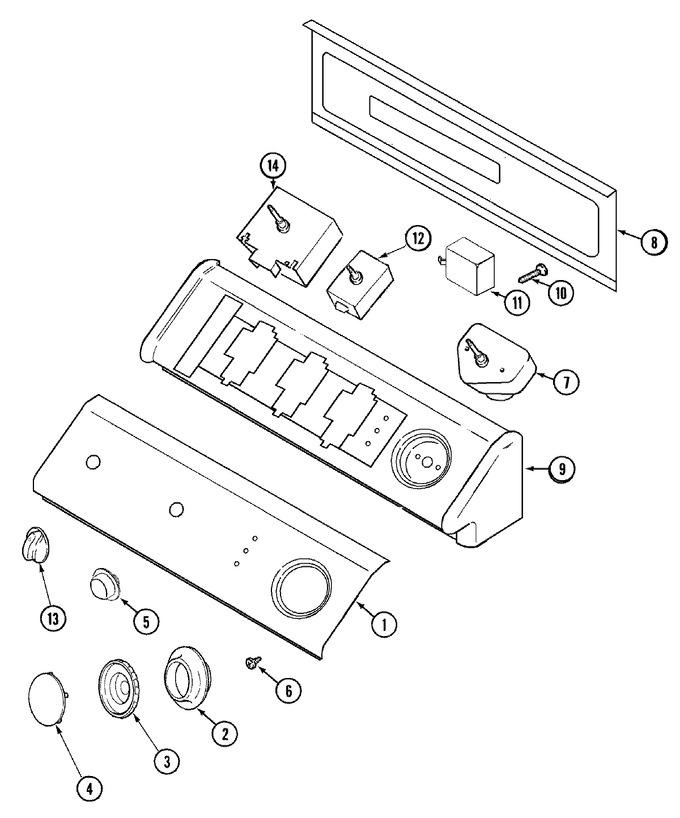

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y22002339 | Screw | 10 |
|
- | ||||
| 1 | 22003950 | Facia, Control Panel | 10 |
|
- | ||||
| 2 | WP22003951 | Dial Skirt (wht) (Replaces: 22003951) | 10 |
|
Immediately | $ 60.08 | |||
| 3 | 22003915 | Timer Knob (grey/blue) | 10 |
|
$ 9.67 | ||||
| 4 | WP22001664 | Timer Knob Insert/cap (wht) (Replaces: 22001664) | 10 |
|
$ 7.85 | ||||
| 5 | 33001619 | Button, Push To Start (wht) | 10 |
|
- | ||||
| 6 | WP90767 | Screw, Timer (Replaces: 33001690) | 10 |
|
Immediately | $ 7.04 | |||
| 7 | WP33001632 | Timer (Replaces: 33001632) | 10 |
|
$ 324.68 | ||||
| 8 | 22002529 | Console Back Panel | 10 |
|
- | ||||
| 8 | WP489128 | Screw (Replaces: 216423) | 10 |
|
$ 9.79 | ||||
| 9 | 33002286 | Console (wht) | 10 |
|
- | ||||
| 10 | WP489128 | Screw (Replaces: 216423) | 10 |
|
$ 9.79 | ||||
| 11 | 33001623 | Buzzer, Non-adjustable | 10 |
|
$ 55.84 | ||||
| 12 | 33001861 | Switch, Push To Start (wht) | 10 |
|
- | ||||
| 13 | WP22001663 | Knob, Selector (wht) (Replaces: 22003913) | 10 |
|
Immediately | $ 53.16 | |||
| 14 | 33001640 | Switch, Temperature | 10 |
|
$ 125.14 |
