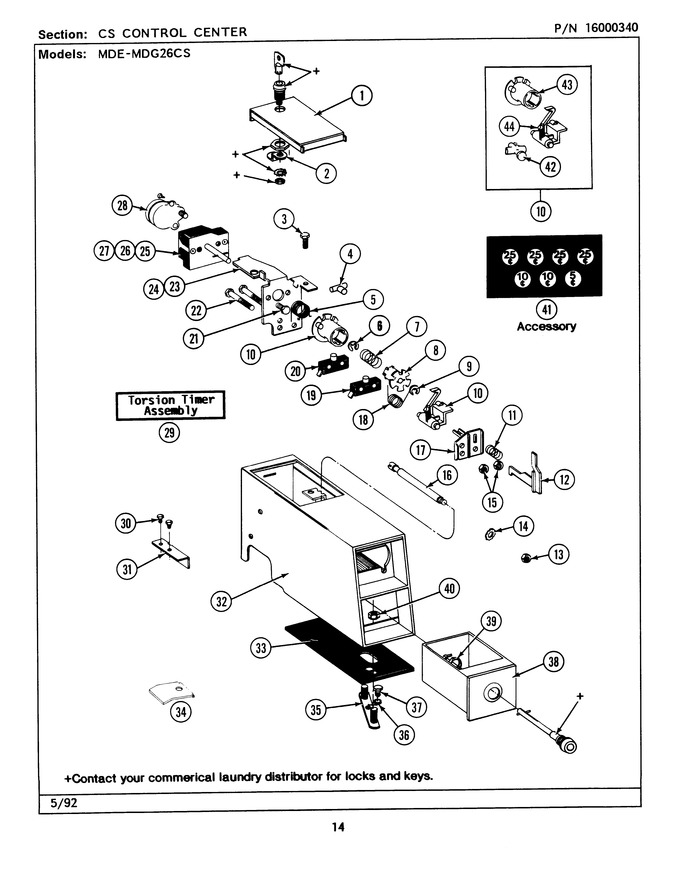

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 203188 | Door, Access (wht) | A0 |
|
- | ||||
| 001 | 203188L | (alm) | A0 |
|
- | ||||
| 001 | 203188M | (h. Wheat) | A0 |
|
- | ||||
| 002 | W11165684 | Locking Cam (Replaces: 213750) | A0 |
|
$ 8.20 | ||||
| 003 | WPW10139210 | Screw, No.8 X 5/16 Inch (Replaces: 211168) | A0 |
|
$ 6.75 | ||||
| 004 | 314335 | Time Adjustment Peg | A0 |
|
$ 5.22 | ||||
| 005 | 314331 | Return Spring | A0 |
|
$ 36.13 | ||||
| 006 | Y312270 | E Clip | A0 |
|
- | ||||
| 007 | 211065 | Spring, Timer Knob | A0 |
|
$ 5.70 | ||||
| 008 | 314330 | Driver For Index Wheel | A0 |
|
$ 2.15 | ||||
| 009 | 211790 | Lock Ring, Timer Shaft | A0 |
|
$ 6.54 | ||||
| 010 | 306104 | Torsion-timer Kit | A0 |
|
- | ||||
| 011 | NLA | Helical Spring ----n | A0 |
|
- | ||||
| 012 | 33002968 | Slider (Replaces: 314337) | A0 |
|
$ 41.03 | ||||
| 013 | Y052721 | Nut | A0 |
|
$ 21.38 | ||||
| 014 | 910387 | Lock Washer | A0 |
|
- | ||||
| 015 | M0282005 | Hex. Nut, No.6-32 (Replaces: Y052634) | A0 |
|
$ 7.07 | ||||
| 016 | 215559 | Bolt, Locking | A0 |
|
$ 5.25 | ||||
| 017 | 314339 | Switch & Slider Bracket | A0 |
|
- | ||||
| 018 | 314332 | Actuator Spring | A0 |
|
- | ||||
| 019 | 305798 | Bypass Switch, Motor | A0 |
|
- | ||||
| 020 | Y305799 | Bypass Switch, Heater | A0 |
|
$ 29.88 | ||||
| 021 | WP488234 | Screw, Relay (tub Support) (Replaces: 910708) | A0 |
|
$ 6.07 | ||||
| 022 | NLA | Screw | A0 |
|
- | ||||
| 023 | 314333 | Timer Mounting Bracket | A0 |
|
- | ||||
| 024 | NLA | Instruction Label | A0 |
|
- | ||||
| 025 | 305796 | Timer | A0 |
|
$ 154.49 | ||||
| 026 | 305813CP | Timer (canada) Part Not Used (Replaces: 305813) | A0 |
|
- | ||||
| 027 | 305800 | Wire Harness, Timer | A0 |
|
- | ||||
| 028 | 305870 | Timer Motor Rpr | A0 |
|
- | ||||
| 029 | 305797 | Torsion Timer Assy. Complete | A0 |
|
$ 185.18 | ||||
| 030 | W11684507 | Screw (Replaces: 212707) | A0 |
|
$ 12.23 | ||||
| 031 | 314334 | Bracket, Coin Slide | A0 |
|
- | ||||
| 032 | 206956 | Coin Meter Assy (wht) | A0 |
|
- | ||||
| 032 | 206956L | (alm) | A0 |
|
- | ||||
| 032 | 206956M | (h. Wheat) | A0 |
|
- | ||||
| 033 | 214660 | Gasket, Meter Case | A0 |
|
- | ||||
| 034 | NLA | Stop, Timer Mechanism | A0 |
|
- | ||||
| 035 | NLA | Mtg. Strap----na | A0 |
|
- | ||||
| 036 | 910309 | Washer | A0 |
|
- | ||||
| 037 | WP90767 | Screw (Replaces: 211294) | A0 |
|
Immediately | $ 7.04 | |||
| 038 | 208883 | Coin Box (wht) (Replaces: 205423) | A0 |
|
- | ||||
| 038 | 208883 | (alm) (Replaces: 205423L) | A0 |
|
- | ||||
| 038 | 205423M | (h. Wheat) | A0 |
|
- | ||||
| 039 | W11395752 | Nut, Hex (Replaces: 212328) | A0 |
|
$ 11.74 | ||||
| 040 | WP62739 | Nut (Replaces: Y052740) | A0 |
|
$ 6.85 | ||||
| 041 | 214648 | Coinage Decal | A0 |
|
- | ||||
| 042 | Y308109 | Adjustment Return Stop (Replaces: 314547) | A0 |
|
$ 53.59 | ||||
| 043 | 314546 | Index Wheel | A0 |
|
$ 31.97 | ||||
| 044 | 314548 | Actuator, Switch | A0 |
|
- |
