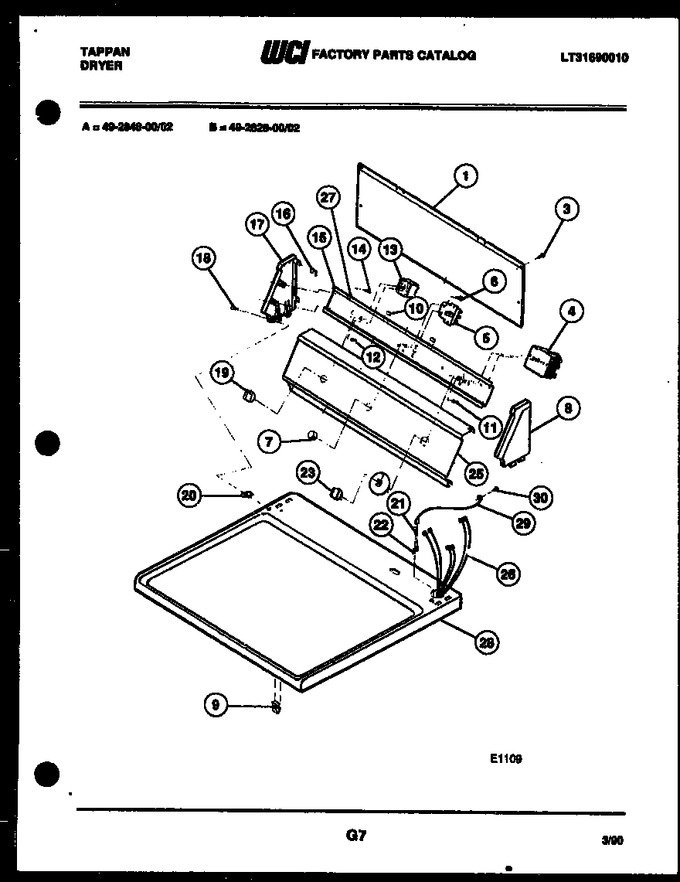

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303205838 | Cover |
|
- | |||||
| 3 | 3261048 | Screw (4) |
|
- | |||||
| 4 | 3201658 | Timer |
|
- | |||||
| 5 | 3201219 | Start Switch |
|
- | |||||
| 6 | 08001544 | Screw |
|
- | |||||
| 7 | 3201220 | Pushbutton |
|
- | |||||
| 8 | 3205978 | End Cap-rh |
|
$ 46.83 | |||||
| 9 | 3205821 | Spring Catch (2) |
|
Immediately | $ 35.44 | ||||
| 10 | 5303281201 | Pad (2) |
|
- | |||||
| 11 | 3281096 | Screw (2) |
|
- | |||||
| 12 | 3281101 | Screw (2) |
|
- | |||||
| 13 | 3281187 | Selector Switch |
|
- | |||||
| 14 | 3281035 | Screw (4) |
|
- | |||||
| 15 | 3205841 | Mounting Bracket |
|
- | |||||
| 16 | 08014350 | Clip (8) |
|
- | |||||
| 17 | 3205979 | End Cap-lh |
|
- | |||||
| 18 | 3281203 | Screw (2) |
|
- | |||||
| 19 | 3281198 | Rotary Knob |
|
- | |||||
| 20 | 3281192 | Grommet (2) |
|
- | |||||
| 21 | 08001689 | Screw |
|
- | |||||
| 22 | 3161198 | Terminal |
|
- | |||||
| 23 | 3205843 | Timer-knob & Pointer Assembly |
|
- | |||||
| 25 | 3205980 | Trimplate |
|
- | |||||
| 26 | 3205964 | Harness |
|
- | |||||
| 27 | 3281200 | Ground Clip |
|
- | |||||
| 28 | 3205825 | Top Panel Almond |
|
- | |||||
| 29 | 3201233 | Ground Wire |
|
- | |||||
| 29 | 3281120 | Ground Screw |
|
- | |||||
| 26A | 3281103 | Wire Tie (3) |
|
- |
