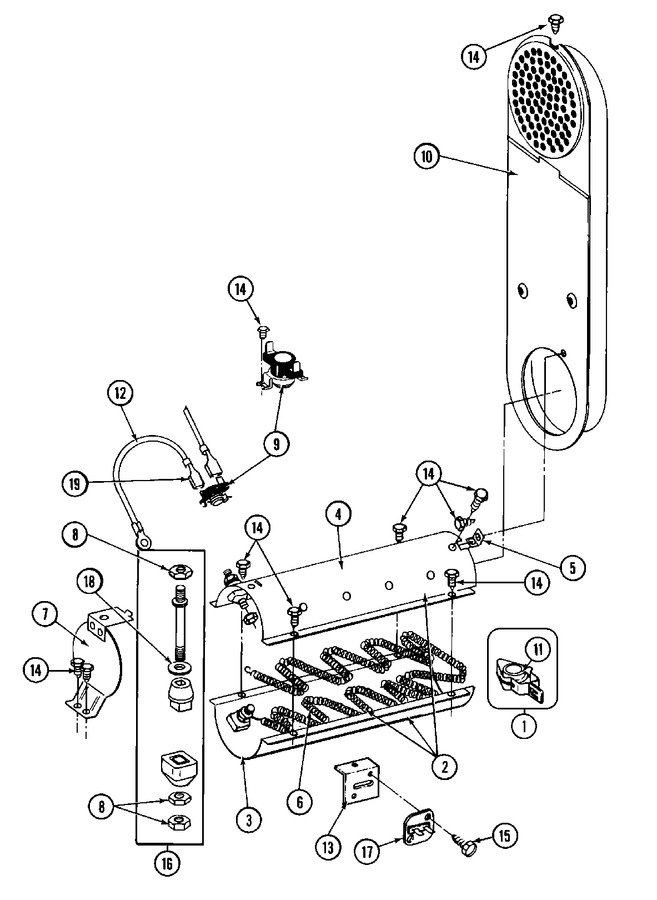

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WPY303881		Clip And Insulator Assembly   (Replaces: Y303881)	A0		Immediately	$ 19.79
002	307470		Part Not Available	A0	Appelez-nous	-
003	Y313576		Heater Chamber, Bottom	A0	Appelez-nous	-
004	Y313575		Heater Chamber, Top	A0	Appelez-nous	-
005	Y312890		Retainer, Heater Chamber	A0	Appelez-nous	-
006	WPY313538		Heater Element 240 Volt   (Replaces: Y313538)	A0		Immediately	$ 47.54
007	304124		Heater Shield	A0	Appelez-nous	-
008	WP112432		Nut, Terminal Block   (Replaces: 311484)	A0			$ 7.16
009	WP303896		Hi-limit Thermostat-canada   (Replaces: 303896)	A0		Immediately	$ 66.12
010	NLA		Inlet Duct Assy.	A0	Appelez-nous	-
011	Y313270		Insulator For Heater Elemen	A0			$ 5.85
012	WPY304693		Jumper Wire   (Replaces: Y304693)	A0		Immediately	$ 6.47
013	315046		Mounting Bracket	A0	Appelez-nous	-
014	WP90767		Screw   (Replaces: 211294)	A0		Immediately	$ 7.04
015	NLA		Screw	A0	Appelez-nous	-
016	Y304596		Terminal Insulator Assembly	A0		Immediately	$ 22.97
017	WP307473		Fuse, Thermal   (Replaces: 307473)	A0		Immediately	$ 55.22
018	WP311093		Washer, 7/32 Inch   (Replaces: 311093)	A0			$ 7.25
019	210745		Wire Terminal	A0	Appelez-nous	-
