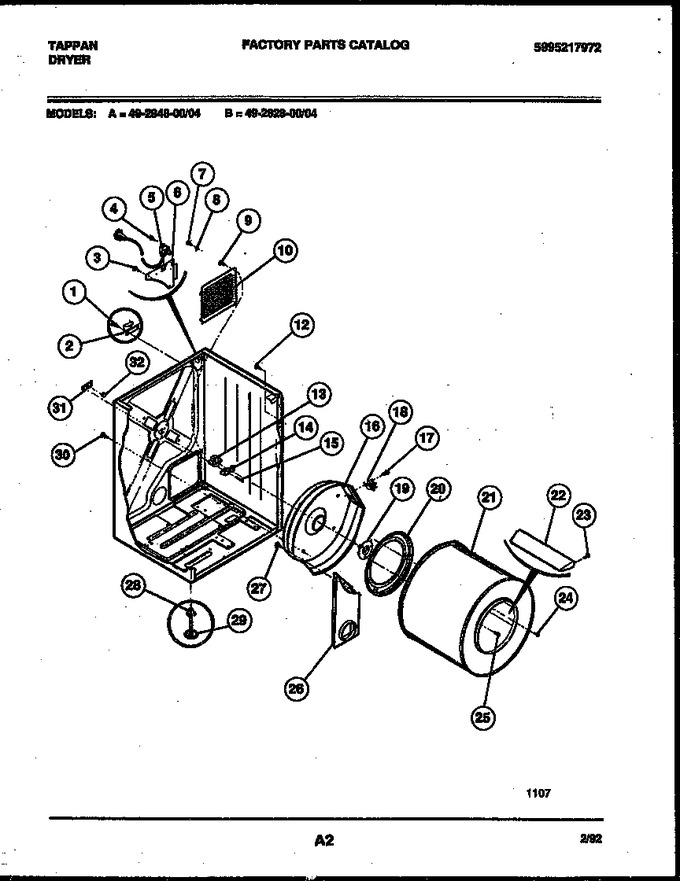

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08011338 | Screw (4) |
|
- | |||||
| 2 | 3281175 | Hinge (2) |
|
$ 10.16 | |||||
| 3 | 3281043 | Screw (2) |
|
- | |||||
| 4 | 3281043 | Screw |
|
- | |||||
| 5 | 3281129 | Service Cord |
|
- | |||||
| 6 | 3281130 | Cover |
|
- | |||||
| 7 | 3281106 | Screw |
|
- | |||||
| 8 | 3281107 | Washer |
|
- | |||||
| 9 | 3281035 | Screw (2) |
|
- | |||||
| 10 | 3281018 | Cover Plate |
|
- | |||||
| 12 | 3010202 | Screw (4) |
|
- | |||||
| 13 | 3281008 | Bearing (parts Contained In Rear Bearing Kit.) |
|
- | |||||
| 14 | 3281023 | Bracket Bearing Support (parts Contained In Rear Bearing |
|
- | |||||
| 15 | 3281033 | Screw (2) (parts Contained In Rear Bearing Kit.) |
|
- | |||||
| 16 | 3205699 | Heater Hsg & Seal Assy |
|
- | |||||
| 17 | 3281120 | Screw (2) |
|
- | |||||
| 18 | 08015399 | Thermostat |
|
- | |||||
| 19 | 3281009 | Shaft (parts Contained In Rear Bearing Kit.) |
|
- | |||||
| 20 | 3201198 | Baffle |
|
- | |||||
| 21 | 3202753 | Drum |
|
- | |||||
| 22 | 3201200 | Vane (3) |
|
- | |||||
| 23 | 131382300 | Screw (9) (Replaces: 3202754) |
|
Immediately | $ 13.46 | ||||
| 24 | 5303207393 | Screw (3) |
|
$ 6.14 | |||||
| 25 | 3281027 | Screw (3) (parts Contained In Rear Bearing Kit.) |
|
- | |||||
| 26 | 3281123 | Heater Duct Assy |
|
- | |||||
| 27 | 3281035 | Screw (3) |
|
- | |||||
| 28 | 3201202 | Grommet (4) |
|
$ 22.47 | |||||
| 29 | 3281032 | Foot Bolt (4) |
|
- | |||||
| 30 | 3010202 | Screw (4) |
|
- | |||||
| 31 | 3281020 | Nut Flat (parts Contained In Rear Bearing Kit.) |
|
- | |||||
| 32 | 3281019 | Ball (parts Contained In Rear Bearing Kit.) |
|
- | |||||
| *64915 | 3281153 | Rear Bearing Kit |
|
- |
