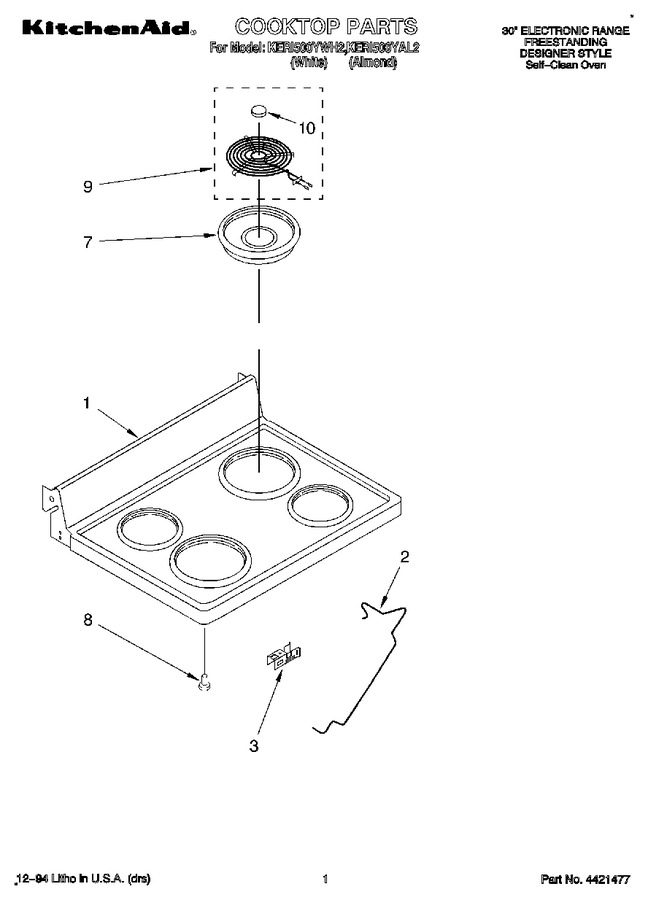

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4211942 | Cooktop, Coil (white) |
|
- | |||||
| 1 | 4211943 | Cooktop, Coil (almond) |
|
- | |||||
| 2 | 9751538 | Cooktop Rod |
|
- | |||||
| 3 | WP313808 | Screw, (4) 6-32 X 1/4 (Replaces: 9750891) |
|
$ 6.84 | |||||
| 3 | RR117 | Clip, Receptacle (Replaces: 9750735) |
|
Immediately | $ 6.05 | ||||
| 7 | 4421412 | Drip Bowl (6`` Almond Model) |
|
- | |||||
| 7 | 4421413 | Drip Bowl (8`` Almond Model) |
|
- | |||||
| 7 | W10291024 | Drip Bowl (8`` White Model) (Replaces: 4212245) |
|
Immediately | $ 49.90 | ||||
| 7 | 4212244 | Drip Bowl (6`` White Model) |
|
- | |||||
| 8 | 238614 | Bumper (2) White (Replaces: 9750969) |
|
$ 72.68 | |||||
| 9 | WPW10259865 | Element, Surface (coil, 8`` Lf-rr) (Replaces: 9751810) |
|
Immediately | $ 105.92 | ||||
| 9 | PS15-4BK | Element, Surface (coil, 6`` Rf-lr) (Replaces: 9751811) |
|
Immediately | $ 35.96 | ||||
| 10 | 4211952 | Medallion, (4) |
|
- | |||||
| LIT9780932 | Use And Care Guide |
|
- | ||||||
| LIT9750520 | Instructions, Installation |
|
- | ||||||
| LIT9780944 | Label, Instruction (lamp Cover) |
|
- | ||||||
| LIT3183987 | Guide, Auto Set |
|
- | ||||||
| LIT9780689 | Quick Set (oven) |
|
- | ||||||
| LIT9750876 | Wiring Diagram |
|
- | ||||||
| LIT9750877 | Tech Sheet-k/a |
|
- |
