Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2002W075-81 Top Assy Appelez-nous -
2 3801F305-80 Bracket, Main Top Appelez-nous -
3 7406P024-60 Element, Solid Disc (8``) Appelez-nous -
3 7406P071-60 Element (8``-2600w) Appelez-nous -
4 8004P012-60 Support, 8`` Appelez-nous -
5 WP3147131 Element (6``)   (Replaces: 7406P023-60) Special Order $ 244.76

6 8004P011-60 Support, 6`` Appelez-nous -
7 3801F268-51 Bracket Anti-turn Appelez-nous -
8 W11233072 Screw, Housing   (Replaces: 7118P015-60) In-Stock Immediately $ 12.62

9 7103P074-60 Nut, Surface Element Appelez-nous -
10 8113P023-60 Manual, Use & Care Appelez-nous -
10 8308P001-60 Polish, Electrol Restoring Appelez-nous -
10 7101P287-60 Screw, Metal Grounding Special Order $ 12.03

10 5175D050-60 Harness Cooktop Appelez-nous -
10 3802F086-80 Brace Main Top 01 Appelez-nous -
10 8112P052-60 C & U Supplement For Solid Ele Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

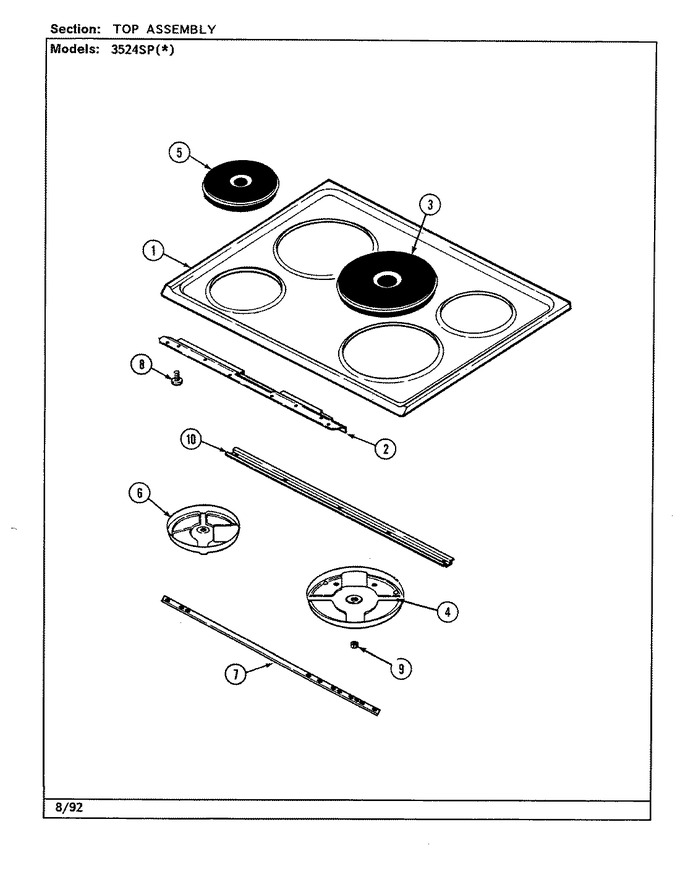

Diagram for 3524SPW
