SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel

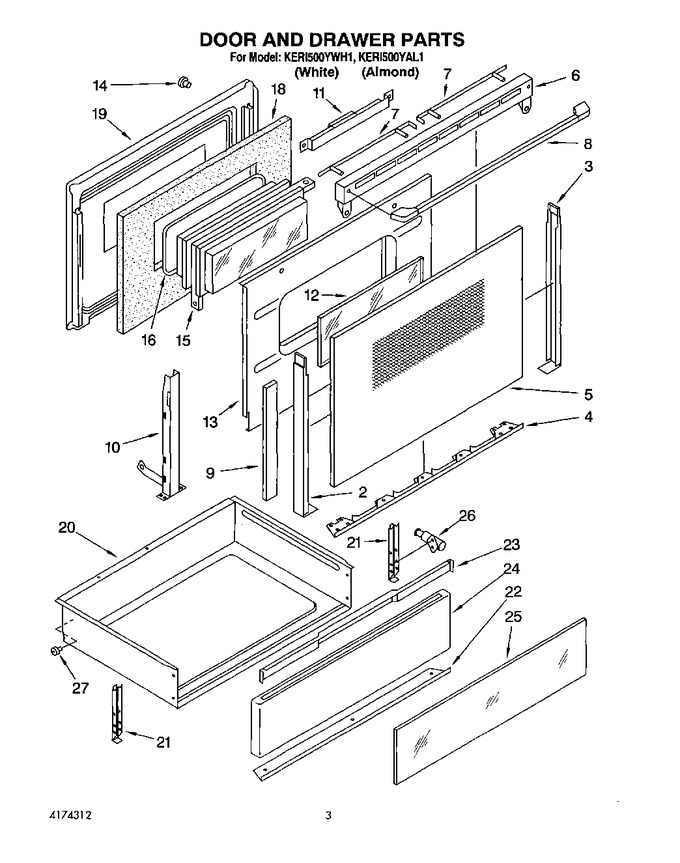

03 - Door And Drawer


04 - Oven Chassis


05 - Oven


06 - Wiring Harness


07 - Rear Chassis, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	4211914		Trim, Door-left (almond)		Appelez-nous	-
2	4211912		Trim, Door-left (white)		Appelez-nous	-
3	4211911		Trim, Door-right (almond)		Appelez-nous	-
3	4211910		Trim, Door-right (white)		Appelez-nous	-
4	4211925		Trim, Door Bottom (white)		Appelez-nous	-
4	9780265		Trim, Door Bottom (screw, 10 X 3/8)		Appelez-nous	-
4	4211926		Trim, Door Bottom (almond)		Appelez-nous	-
5	9780314		Glass, Door (white)		Appelez-nous	-
5	9780328		Glass, Door (almond)		Appelez-nous	-
6	3149333		Vent, Door (screw (2) 10ab X 1/2)				$ 5.33
6	4211908		Vent, Door (almond)		Appelez-nous	-
6	4211907		Vent, Door (white)		Appelez-nous	-
7	9750898		Vent Back		Appelez-nous	-
8	WPW10001180		Handle, Door (screw (2) 10 X 1/2 (2))   (Replaces: 9781072)				$ 7.23
8	9750706		Handle, Door (almond)		Appelez-nous	-
8	9750705		Handle, Door (white)		Appelez-nous	-
9	9750694		Gasket, Door Glass		Appelez-nous	-
10	WP9782033		Hinge, Door R Or L   (Replaces: 9750234)			Immediately	$ 208.67
10	9780265		Screw (4) 10 X 3/8		Appelez-nous	-
11	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
11	9750693		Channel, Heat		Appelez-nous	-
12	9750634		Baffle, Glass				$ 61.41
13	4211941		Shield Door		Appelez-nous	-
14	238614		Bumper, Black   (Replaces: 9780771)				$ 72.68
15	9751245		Window Pack Assy.		Appelez-nous	-
16	9751135		Seal, Window		Appelez-nous	-
16	9780265		Screw (2) 8 X 1/4		Appelez-nous	-
18	WPW10208653		Insulation   (Replaces: 9750231)			Immediately	$ 49.92
19	4212163		Liner, Door		Appelez-nous	-
20	9750257		Drawer & Roller		Appelez-nous	-
21	9780272		Screw (4) 10 X 1/2		Appelez-nous	-
21	9750169		Bracket, Drawer		Appelez-nous	-
22	9780265		Trim, Drawer Bottm. (screw, (3) 10 X 3/8)		Appelez-nous	-
22	4211906		Trim, Drawer Bottm. (almond)		Appelez-nous	-
22	4211905		Trim, Drawer Bottm. (white)		Appelez-nous	-
23	4211931		Trim, Drawer Top (white)		Appelez-nous	-
23	4211932		Trim, Drawer Top (almond)		Appelez-nous	-
23	9780265		Trim, Drawer Top (screw, (2) 10 X 3/8)		Appelez-nous	-
24	4211917		Front, Drawer (almond)		Appelez-nous	-
24	4211916		Front, Drawer (white)		Appelez-nous	-
25	9780326		Glass, Drawer Face (almond)		Appelez-nous	-
25	9750612		Glass, Drawer Face (white)		Appelez-nous	-
26	9780806		Screw, 4ab X 3/8		Appelez-nous	-
26	9750775		Latch, Drawer		Appelez-nous	-
27	814229		Roller, Drawer			Immediately	$ 51.23

    View Diagram in Separate Window       Print Part List
