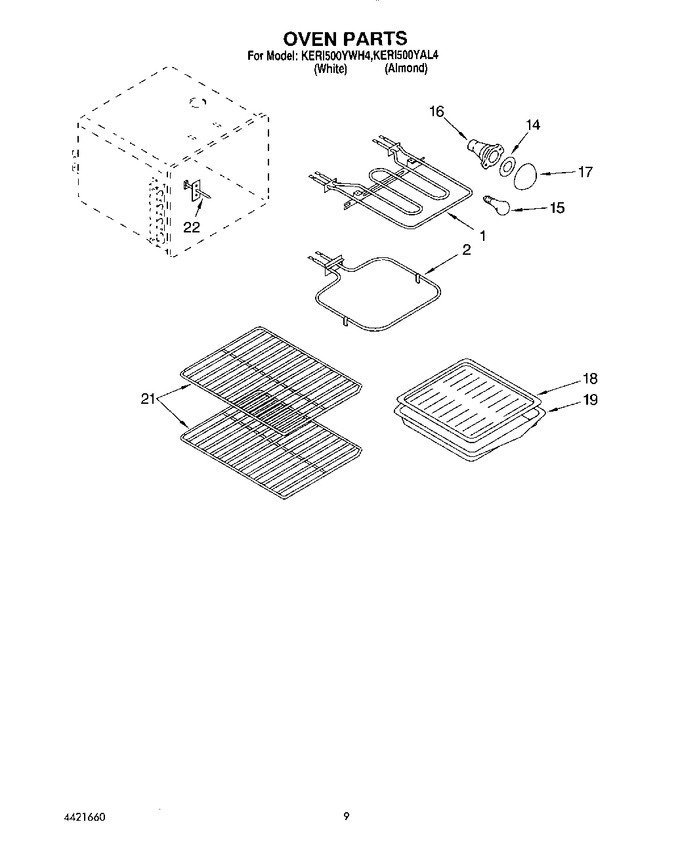

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	UT513		Element, Broil   (Replaces: 9750967)			Immediately	$ 56.69
2	9780269		Screw, Elements 8-32 X 3/8		Appelez-nous	-
2	UB413		Element, Bake   (Replaces: 9750213)			Immediately	$ 47.24
14	WP3184533		Gasket, Len`s   (Replaces: 3184533)			Immediately	$ 7.73
15	316538904		Bulb, Oven   (Replaces: 4211947)			Immediately	$ 20.48
16	W11594027		Socket, Light   (Replaces: 9781050)			Immediately	$ 78.31
17	WP9781049		Lens, Light   (Replaces: 9781049)			Immediately	$ 71.93
18	4396923		Grill, Broiler   (Replaces: 4421424)			Immediately	$ 52.04
19	4396923		Pan, Broiler   (Replaces: 4211944)			Immediately	$ 52.04
21	9750498		Rack, Standard		Appelez-nous	-
22	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
22	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
22	350930		Paint, Pressurized Spray (12 Oz.) White   (Replaces: 350930)			Immediately	$ 34.39
22	261888		New Avocado		Appelez-nous	-
22	261886		Coffee		Appelez-nous	-
22	261890		Harvest Gold		Appelez-nous	-
22	285365		Toast		Appelez-nous	-
22	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
22	WA906B		Scraper   (Replaces: 3183488)			Immediately	$ 4.86
22	350942		Primer (white)   (Replaces: 206922)				$ 80.69
22	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
22	978883		Almond (uncut)		Appelez-nous	-
22	261891		Harvest Gold (uncut)		Appelez-nous	-
22	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
22	285368		Platinum (uncut)		Appelez-nous	-
22	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
22	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
22	CERAMABRYTE		Glass Cleaner   (Replaces: 3184477)			Immediately	$ 9.95
22	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
22	261582		Grease		Appelez-nous	-
22	8273888A		Anti-tip Kit   (Replaces: 9780663)				$ 27.96
22	285006		Paint, Spray 13 Oz. (black)			Immediately	$ 51.34
22	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
22	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
22	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
22	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
22	3148440		Sensor		Appelez-nous	-
22	9780269		Screw, (1) 8-32 X 3/8		Appelez-nous	-
22	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
22	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
22	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
22	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
22	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
22	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
22	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
22	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
22	242831		Wire (14 Ga. 200 C Red)				$ 342.23
22	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
22	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
22	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
22	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
22	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
22	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
22	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
	9751003		Lead, Ground		Appelez-nous	-
	LIT9780932		Use And Care Guide		Appelez-nous	-
	9750376		Harness, Wire (door Switch)		Appelez-nous	-
	LIT9750520		Instructions, Installation		Appelez-nous	-
	LIT9780944		Label, Instruction (lamp Cover)		Appelez-nous	-
	LIT9780689		Quick Set Guide		Appelez-nous	-
	LIT9750877		Tech Sheet		Appelez-nous	-
	LIT9750876		Wiring Diagram		Appelez-nous	-
	LIT4317161		Service Manual		Appelez-nous	-
	9781213		Harness, Wire (oven)		Appelez-nous	-
	9781214		Harness, Wire (lock Switch)		Appelez-nous	-
	9751014		Harness, Wire (cooktop)		Appelez-nous	-
	9750910		Harness, Wire (control)		Appelez-nous	-
