Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4162908 Short Frame Assembly (includes Items 2, 18, 19, 21, & 23) Appelez-nous -
2 WP693304 Screw   (Replaces: 4159390) Special Order $ 7.04

3 4161631 Door Seal Assembly (includes Item 4) Special Order $ 91.96

4 4161608 Clip, Seal Appelez-nous -
5 4161626 Bumper, Door Appelez-nous -
7 4172012 Screw Appelez-nous -
9 4171197 Actuator, Interlock Switch Appelez-nous -
10 4159115 Lock Nut Appelez-nous -
11 4160092 Keeper, Latch Appelez-nous -
12 4159421 Screw, 10-16 X 3/8 Appelez-nous -
13 WP9741251 Bracket, Top Panel Anchor   (Replaces: 4162167) Special Order $ 7.61

14 9740980 Screw Appelez-nous -
15 4162306 Channel, Evaporation Appelez-nous -
16 4161564 Support, Evaporation Channel Appelez-nous -
17 4162151 Screw, 10-32 X 1/2 Appelez-nous -
18 4171936 Frame Assembly (l.h.) Appelez-nous -
19 4162867 Cross Frame, Rear Appelez-nous -
20 9740120 Sleeve, Actuator Spacer Appelez-nous -
21 4172046 Frame Assembly (r.h.) Appelez-nous -
22 4159443 Screw, 1/4-20 X 1/2 Appelez-nous -
23 4161368 Cross Frame, Front Appelez-nous -
24 4171618 Kick Board Appelez-nous -
25 4162911 Foot, Leveling Appelez-nous -
26 4159494 Lock Washer Appelez-nous -
27 4159372 Screw, 10-32 X 3/8 Appelez-nous -
28 4161369 Enclosure, Elec. Supply Appelez-nous -
28 W11233072 Screw, 8-18 X 1/2   (Replaces: 4159396) In-Stock Immediately $ 12.62

29 9740042 Panel, Bottom Appelez-nous -
30 4171304 Trim, Tank (r.h.) Appelez-nous -
30 9741233 Trim, Tank (screw) Appelez-nous -
30 4171305 Trim, Tank (l.h.) Appelez-nous -
31 9740041 Panel, Side (r.h.) Appelez-nous -
31 9740040 Panel, Side (l.h.) Appelez-nous -
32 9741213 Tank (serviced Complete With Frame) Appelez-nous -
33 4171215 Protector, Edge Appelez-nous -
34 9740033 Clip, Speed (8) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

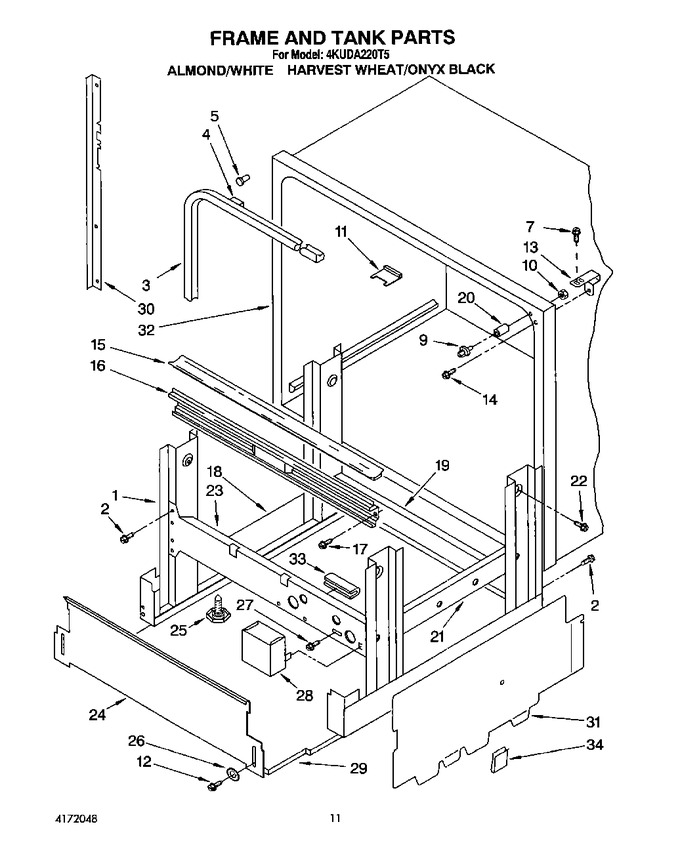

Diagram for 4KUDA220T5
