View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Console And Control Parts
03 - Cabinet And Component Parts
04 - Door Parts

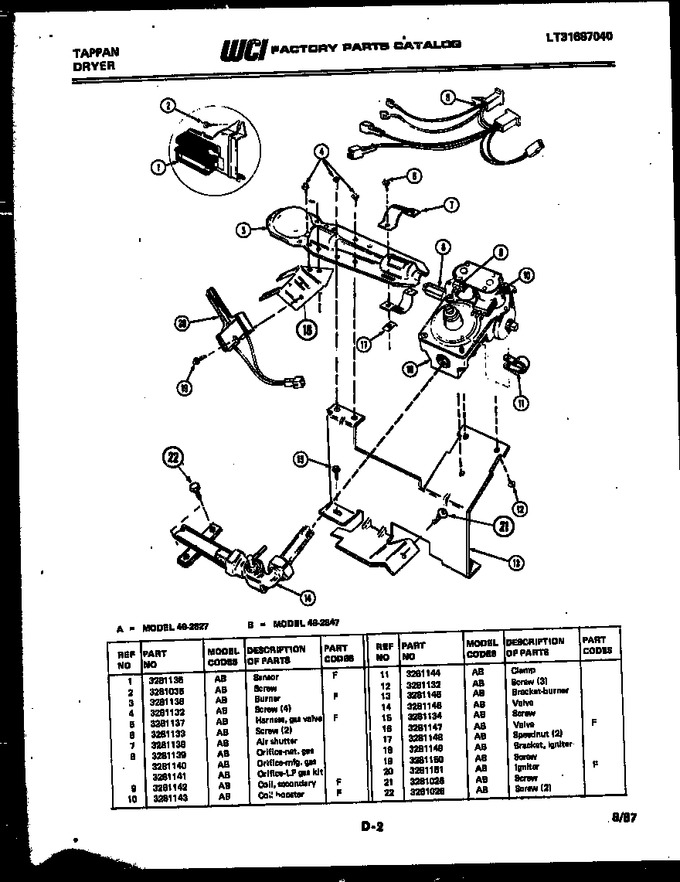

05 - Burner, Igniter And Valve
06 - Motor And Blower
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3281135 | Sensor |
|
- | |||||
| 2 | 3281035 | Screw |
|
- | |||||
| 3 | 3281136 | Burner |
|
- | |||||
| 4 | 3281132 | Screw (4) |
|
- | |||||
| 5 | 3281137 | Harness, Gas Valve |
|
- | |||||
| 6 | 3281133 | Screw (2) |
|
- | |||||
| 7 | 3281138 | Air Shutter |
|
- | |||||
| 8 | 3281139 | Orifice - Nat. Gas |
|
- | |||||
| 9 | 3281142 | Coil, Secondary |
|
- | |||||
| 10 | 3281143 | Coil - Booster |
|
- | |||||
| 11 | 3281144 | Clamp |
|
- | |||||
| 12 | 3281132 | Screw (3) |
|
- | |||||
| 13 | 3281145 | Bracket - Burner |
|
- | |||||
| 14 | 3281146 | Valve |
|
- | |||||
| 15 | 3281134 | Screw |
|
- | |||||
| 16 | 3281147 | Valve |
|
- | |||||
| 17 | 3281148 | Speednut (2) |
|
- | |||||
| 18 | 3281149 | Bracket Igniter |
|
- | |||||
| 19 | 3281150 | Screw |
|
- | |||||
| 20 | 3281151 | Igniter |
|
- | |||||
| 21 | 3281026 | Screw |
|
- | |||||
| 22 | 3281026 | Screw (2) |
|
- | |||||
| 8A | 3281140 | Orifice - Mfg. Gas |
|
- | |||||
| 8B | 3281141 | Orifice - Lp Gas Kit |
|
- |
