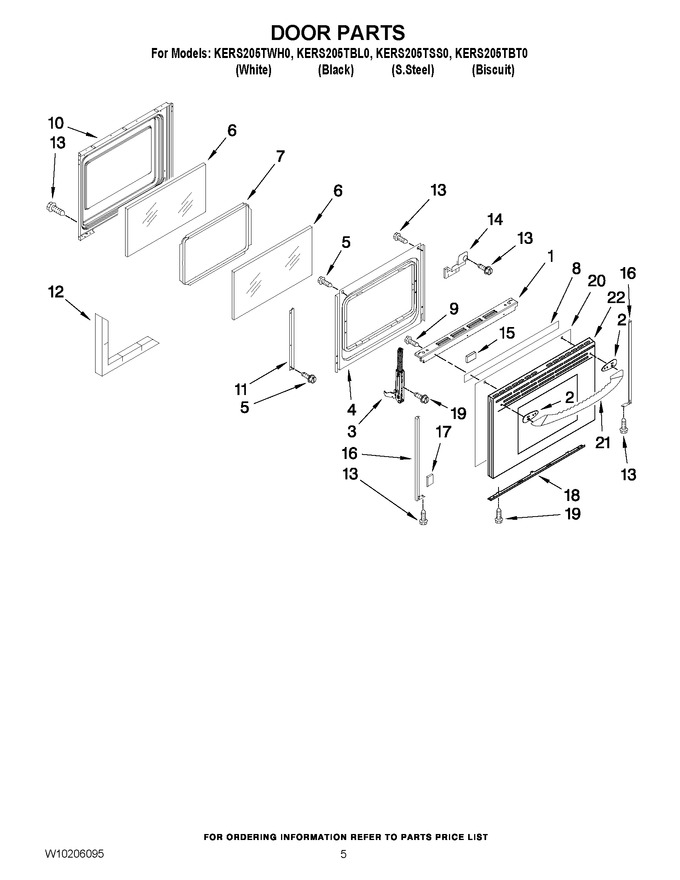

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3608F139-71 | Trim, Door Top (white) |
|
- | |||||
| 1 | 3608F139-78 | Trim, Door Top (biscuit) |
|
$ 31.97 | |||||
| 1 | 3608F139-70 | Trim, Door Top (black) |
|
$ 12.86 | |||||
| 2 | W10169552 | Spacer, Handle (black) |
|
- | |||||
| 2 | W10169553 | Spacer, Handle (white) |
|
- | |||||
| 2 | W10169554 | Spacer, Handle (biscuit) |
|
- | |||||
| 3 | 74010546 | Hinge, Door (2) |
|
Immediately | $ 77.34 | ||||
| 4 | 3601F380-51 | Baffel, Retainer |
|
$ 25.83 | |||||
| 5 | W11233072 | Screw (6) (Replaces: 74002979) |
|
Immediately | $ 12.62 | ||||
| 6 | 74003645 | Glass, Inner (2) |
|
Immediately | $ 162.53 | ||||
| 7 | 74003644 | Frame, Glass Inner |
|
- | |||||
| 8 | 8270P090-60 | Tape, Foil |
|
- | |||||
| 9 | W11164114 | Screw (Replaces: W10176584) |
|
$ 3.76 | |||||
| 10 | 74008926 | Lining, Door |
|
- | |||||
| 11 | 74011458 | Bracket, Glass (2) |
|
- | |||||
| 12 | 74003647 | Insulation, Door |
|
- | |||||
| 13 | WPY706189 | Screw (8) (Replaces: Y706189) |
|
Immediately | $ 6.47 | ||||
| 14 | 3801P858-45 | Bracket, Handle (left) |
|
$ 6.01 | |||||
| 14 | 3808P857-45 | Bracket, Handle (right) |
|
- | |||||
| 15 | WP74004224 | Tape, White (Replaces: 74004224) |
|
$ 10.53 | |||||
| 16 | 74010560 | Trim, Door Side (black) |
|
- | |||||
| 16 | 74010562 | Trim, Door Side (biscuit) |
|
- | |||||
| 16 | 74010561 | Trim, Door Side (white) |
|
- | |||||
| 17 | WP74009014 | Tape, Double Sided (biscuit) (Replaces: 74009014) |
|
$ 6.91 | |||||
| 17 | 74009025 | Tape, Double Sided (black) |
|
$ 8.60 | |||||
| 18 | 74008757 | Trim, Door Bottom (white) |
|
- | |||||
| 18 | 74008745 | Trim, Door Bottom (black) |
|
- | |||||
| 18 | 74008758 | Trim, Door Bottom (biscuit) |
|
- | |||||
| 19 | WP4159193 | Screw 10-24x5/16 (Replaces: 7101P282-60) |
|
$ 4.29 | |||||
| 20 | W10160909 | Glass, Door (s. Steel (order Item No.15 When Replacing Door Glass)) |
|
- | |||||
| 20 | W10182773 | Glass, Door (black) |
|
- | |||||
| 20 | W10182776 | Glass, Door (white) |
|
- | |||||
| 20 | W10183574 | Glass, Door (biscuit) |
|
- | |||||
| 21 | W10153016 | Handle, Door (s.steel) |
|
$ 126.24 | |||||
| 21 | W10153014 | Handle, Door (biscuit) |
|
- | |||||
| 21 | W10153015 | Handle, Door (black) |
|
- | |||||
| 21 | W10153013 | Handle, Door (white) |
|
- | |||||
| 22 | 7760P218-60 | Panel, Ss Outer |
|
$ 239.97 |
