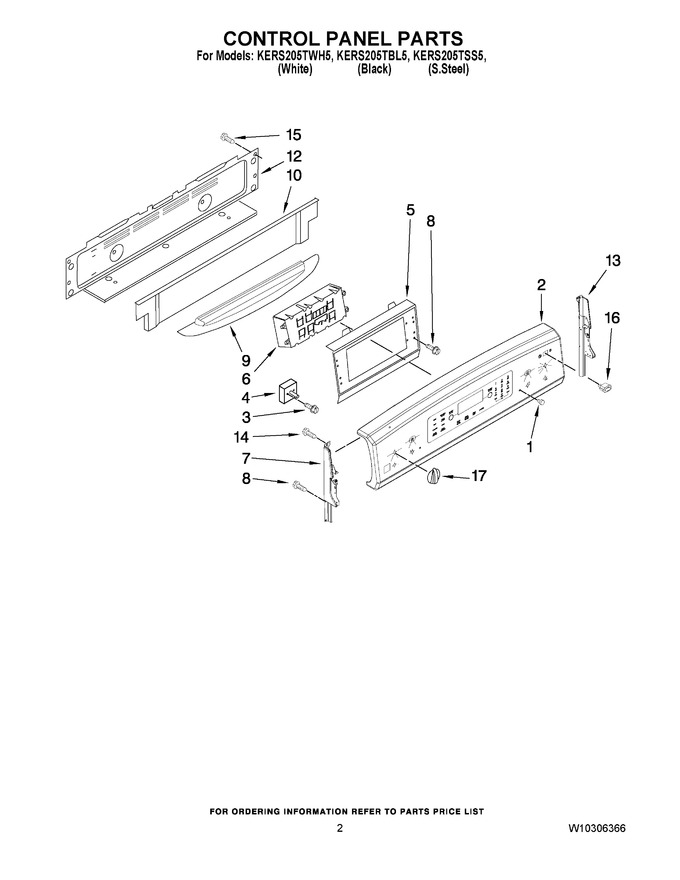

02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3196068		Lens   (Replaces: 3196068)			Immediately	$ 5.63
2	W10218255		Panel & Membrane Switch (black)		Appelez-nous	-
2	W10218257		Panel & Membrane Switch (stainless)		Appelez-nous	-
2	W10218258		Panel & Membrane Switch (white)		Appelez-nous	-
3	WP3400882		Screw, Switch   (Replaces: 3400882)			Immediately	$ 6.47
4	WP7403P238-60		Switch, Infinte (lf/rr)   (Replaces: 7403P373-60)			Immediately	$ 57.78
4	WP74010824		Switch, Infinte (dual Rf/lr)   (Replaces: 7450P011-60)			Immediately	$ 100.92
5	3801F945-51		Bracket, Control				$ 53.75
6	8507P331-60		Control				$ 345.77
7	3807F703-70		End Cap, Left (black)		Appelez-nous	-
7	3807F703-71		End Cap, Left (white)		Appelez-nous	-
8	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
9	3604F382-81		Shield, Heat Visor (white)				$ 32.49
9	3604F382-09		Shield, Heat Visor (black)				$ 50.83
10	3604F381-19		Shield, Vent				$ 31.31
12	4005F804-51		Cover, Rear Wire				$ 30.01
13	3807F702-71		End Cap, Right (white)		Appelez-nous	-
13	3807F702-70		End Cap, Right (black)		Appelez-nous	-
14	W11347848		Screw   (Replaces: 7101P376-60)				$ 12.20
15	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
16	7403P798-60		Switch, Rocker (black)		Appelez-nous	-
16	74008717		Switch, Rocker (white)   (Replaces: 7403P799-60)				$ 72.68
17	WPW10160371		Knob (s.steel)   (Replaces: W10160371)			Immediately	$ 40.67
17	WPW10160370		Knob (black)   (Replaces: W10160370)				$ 19.23
17	WPW10160368		Knob (white)   (Replaces: W10160368)			Immediately	$ 19.69
