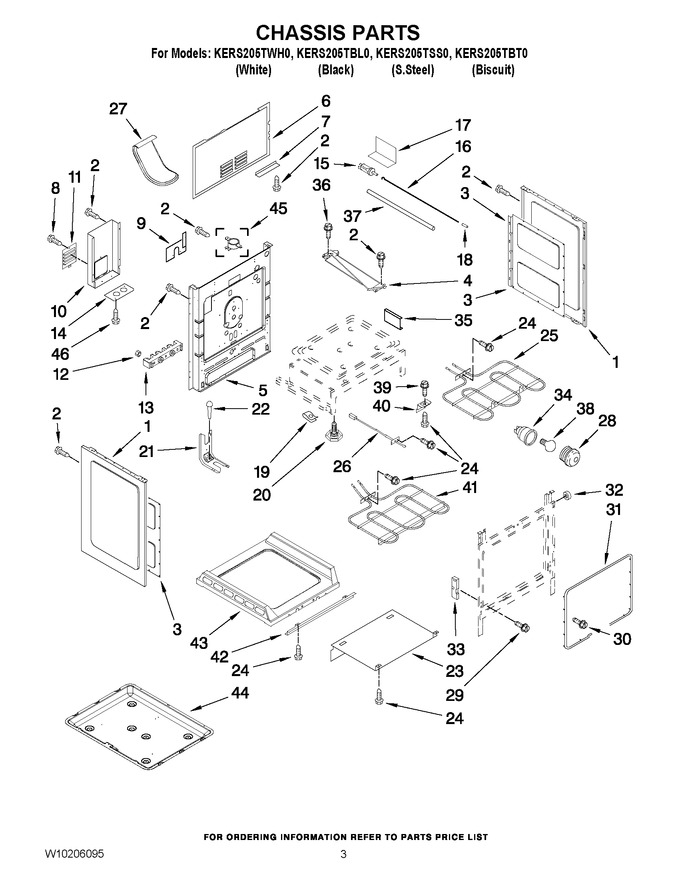

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74008710		Panel, Side (black)		Appelez-nous	-
1	74008709		Panel, Side (white)		Appelez-nous	-
1	74008708		Panel, Side (biscuit)		Appelez-nous	-
2	WP7101P434-60		Screw   (Replaces: 71001394)				$ 6.26
3	74008701		Retainer, Side		Appelez-nous	-
4	W10792991		Latch Assembly   (Replaces: 8002P104-60)				$ 305.63
5	4002P347-51		Main Back		Appelez-nous	-
6	74009651		Cover, Main Wire		Appelez-nous	-
7	74008762		Bottom Wire Cover		Appelez-nous	-
8	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 12.62
9	74008759		Insulator, Cord		Appelez-nous	-
10	4005P703-51		Cover, Wire (lwr)		Appelez-nous	-
11	4005P704-51		Panel, Access				$ 7.07
12	WP7103P027-60		Nut, Term. Block   (Replaces: 7103P027-60)			Immediately	$ 6.47
13	WPW10245259		Block, Terminal   (Replaces: 7401P039-60)			Immediately	$ 31.65
14	3605F146-51		Plate, Conduit				$ 6.06
15	74008703		Switch, Door				$ 127.11
16	74008706		Rod, Door Switch		Appelez-nous	-
17	74008704		Insulator, Shield		Appelez-nous	-
18	74008707		Bumper				$ 8.73
19	74008835		Clip, Retainer				$ 8.95
20	W11665456		Leg, Leveling   (Replaces: 74002373)			Immediately	$ 25.30
21	WP3801F656-51		Bracket,anti-tip   (Replaces: 74005564)			Immediately	$ 4.69
22	WP7101P485-60		Screw, Anti-tip   (Replaces: 7101P485-60)				$ 26.33
23	74008689		Shield, Heat		Appelez-nous	-
24	W11233072		Screw, 8ab 1/2 (4)   (Replaces: 74002979)			Immediately	$ 12.62
25	WP7406P493-60		Element, Broil   (Replaces: 7406P493-60)			Immediately	$ 178.99
26	12001656		Sensor, Oven   (Replaces: 74004943)			Immediately	$ 39.55
27	74008691		Vent, Oven		Appelez-nous	-
28	74011299		Lens, Bulb		Appelez-nous	-
29	WP4159193		Screw (4)   (Replaces: 7101P282-60)				$ 4.29
30	WP7101P434-60		Screw, Shoulder(6)   (Replaces: 71001394)				$ 6.26
31	W11562931		Gasket   (Replaces: W10162385)			Immediately	$ 78.98
32	74008690		Spacer, Side Pnl.				$ 19.49
33	WP74010551		Receiver, Hinge   (Replaces: 74010551)			Immediately	$ 12.60
34	WP74011278		Light Assembly   (Replaces: 74011278)				$ 101.56
35	74011187		Bracket, Oven		Appelez-nous	-
36	74003975		Screw (black) (2)				$ 12.02
37	74008705		Rod, Door Sleeve		Appelez-nous	-
38	8009		Bulb-oven   (Replaces: 7407P103-60)			Immediately	$ 16.80
39	WP74003976		Screw, Shoulder   (Replaces: 74003976)				$ 6.47
40	3801P822-45		Support, Ov Btm				$ 5.27
41	WPW10276482		Element, Bake   (Replaces: 74011117)			Immediately	$ 146.10
42	3807P680-45		Support, Oven				$ 33.39
43	WPW10211368		Bottom, Oven   (Replaces: 74008741)			Immediately	$ 287.07
44	3401F084-45		Pan, Bake Brnr				$ 56.18
45	74008715		Switch, Terminal				$ 183.40
46	WP4159193		Screw (2)   (Replaces: 7101P336-60)				$ 4.29
NI	74008700		Insulation, Wrap				$ 54.48
NI	7002P492-60		Insulation, Back				$ 59.49
NI	3804F316-51		Retainer, Insulation		Appelez-nous	-
