Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10168033 Use & Care Guide Appelez-nous -
1 W10167997 Wiring Diagram Appelez-nous -
1 W10185365 Installation Instructions Appelez-nous -
2 W10240342 Cooktop (white) Appelez-nous -
2 W10240341 Cooktop (black) Appelez-nous -
2 W10217638 Cooktop (biscuit) Appelez-nous -
3 74008761 Spacer Snap-in (4)   (Replaces: 8010P149-60) Special Order $ 7.55

4 W10823711 Element Lf/rr (2)   (Replaces: 7406P365-60) In-Stock Immediately $ 183.95

5 W10823720 Element, Lr   (Replaces: 7406P441-60) In-Stock Immediately $ 302.91

6 74007134 Spring, Element   (Replaces: 7803P087-60) Special Order $ 10.51

7 WP3196175 Screw   (Replaces: 3196165) Special Order $ 6.47

8 4011F497-51 Bottom, Burner Box Appelez-nous -
9 W10823692 Element Rf   (Replaces: 4453909) In-Stock Immediately $ 204.83


    View Diagram in Separate Window     Print Icon   Print Part List

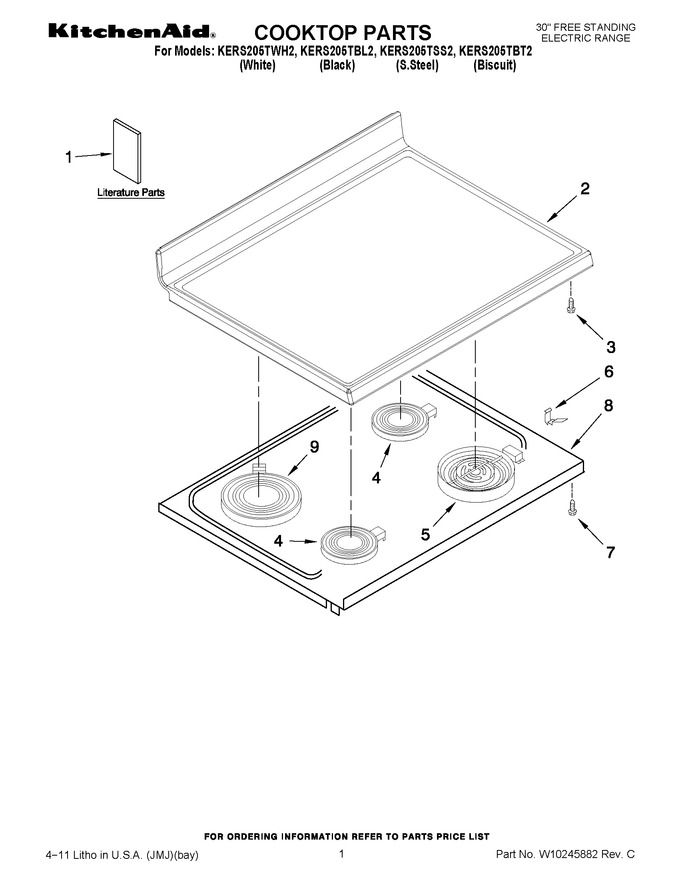

Diagram for KERS205TWH2
