SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts

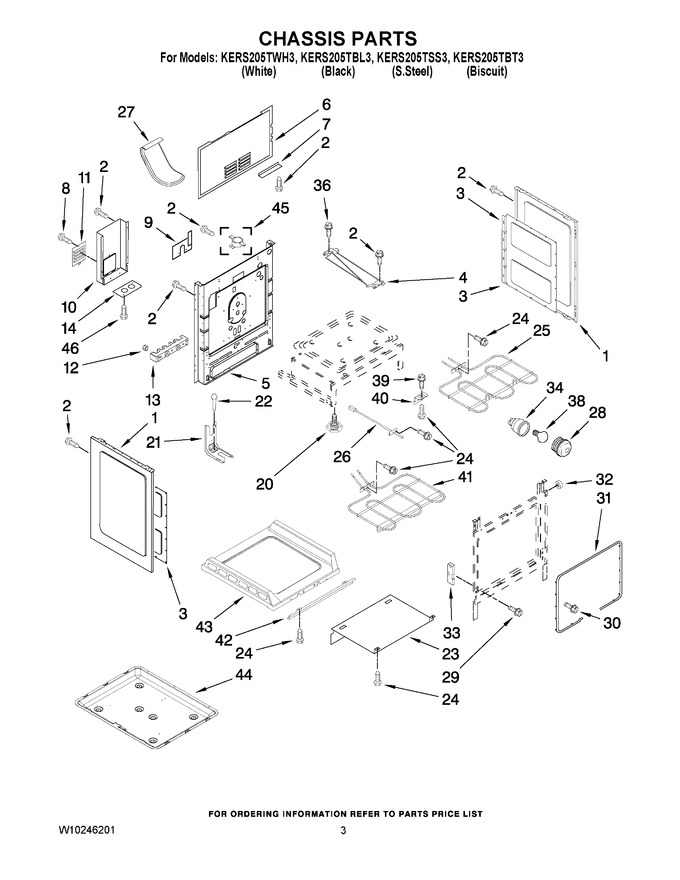

03 - Chassis Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2618F172-57		Panel, Side (biscuit)				$ 48.84
1	2618F172-58		Panel, Side (white)				$ 47.61
1	2618F172-69		Panel, Side (black)				$ 81.90
2	WP3196175		Screw   (Replaces: 3196165)				$ 6.47
3	3804F311-51		Retainer, Side		Appelez-nous	-
4	W10792991		Latch Assembly   (Replaces: 8002P104-60)				$ 305.63
5	4002F347-51		Main Back		Appelez-nous	-
6	4005F754-51		Cover, Main Wire				$ 87.80
7	4005F712-51		Bottom Wire Cover		Appelez-nous	-
8	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
9	7003P145-60		Insulator, Cord		Appelez-nous	-
10	4005P703-51		Cover, Wire (lwr)		Appelez-nous	-
11	4005P704-51		Panel, Access				$ 7.07
12	WP7103P027-60		Nut, Term. Block   (Replaces: 7103P027-60)			Immediately	$ 6.47
13	WPW10245259		Block, Terminal   (Replaces: 7401P039-60)			Immediately	$ 31.65
14	3605P146-51		Plate, Conduit		Appelez-nous	-
20	W11665456		Leg, Leveling   (Replaces: 7101P507-60)			Immediately	$ 25.30
21	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 4.69
22	WP7101P485-60		Screw, Anti-tip   (Replaces: 7101P485-60)				$ 26.33
23	3604F371-51		Shield, Heat				$ 13.98
24	W11347848		Screw, 8ab 1/2 (4)   (Replaces: 7101P376-60)				$ 12.20
25	WP7406P493-60		Element, Broil   (Replaces: 7406P493-60)			Immediately	$ 178.99
26	12001656		Sensor, Oven   (Replaces: 7430P042-60)			Immediately	$ 39.55
27	8026P081-60		Vent, Oven		Appelez-nous	-
28	898020-001		Lens, Bulb		Appelez-nous	-
29	WP4159193		Screw (4)   (Replaces: 7101P282-60)				$ 4.29
30	7101P618-60		Screw, Shoulder(6)		Appelez-nous	-
31	W11562931		Gasket   (Replaces: W10162385)			Immediately	$ 78.98
32	74008690		Spacer, Side Pnl.   (Replaces: 8010P148-60)				$ 19.49
33	WP74010551		Receiver, Hinge   (Replaces: 7106P125-60)			Immediately	$ 12.60
34	WP74011278		Light Assembly   (Replaces: 7407P181-60)				$ 101.56
36	74003975		Screw (black) (2)   (Replaces: 7101P375-60)				$ 12.02
38	8009		Bulb-oven   (Replaces: 7407P103-60)			Immediately	$ 16.80
39	WP74003976		Screw, Shoulder   (Replaces: 7101P500-60)				$ 6.47
40	3801P822-45		Support, Ov Btm				$ 5.27
41	WPW10276482		Element, Bake   (Replaces: 7406P451-60)			Immediately	$ 146.10
42	3807P680-45		Support, Oven				$ 33.39
43	WPW10211368		Bottom, Oven   (Replaces: 2205F053-19)			Immediately	$ 287.07
44	3401F084-45		Pan, Bake Brnr				$ 56.18
45	74008715		Switch, Terminal   (Replaces: 7403P857-60)				$ 183.40
46	WP4159193		Screw (2)   (Replaces: 7101P336-60)				$ 4.29
NI	3804F316-51		Retainer, Insulation		Appelez-nous	-
NI	7002P362-60		Insulation, Wrap				$ 79.17
NI	7002P492-60		Insulation, Back				$ 59.49
NI	7002P494-60		Insulation, Side		Appelez-nous	-
