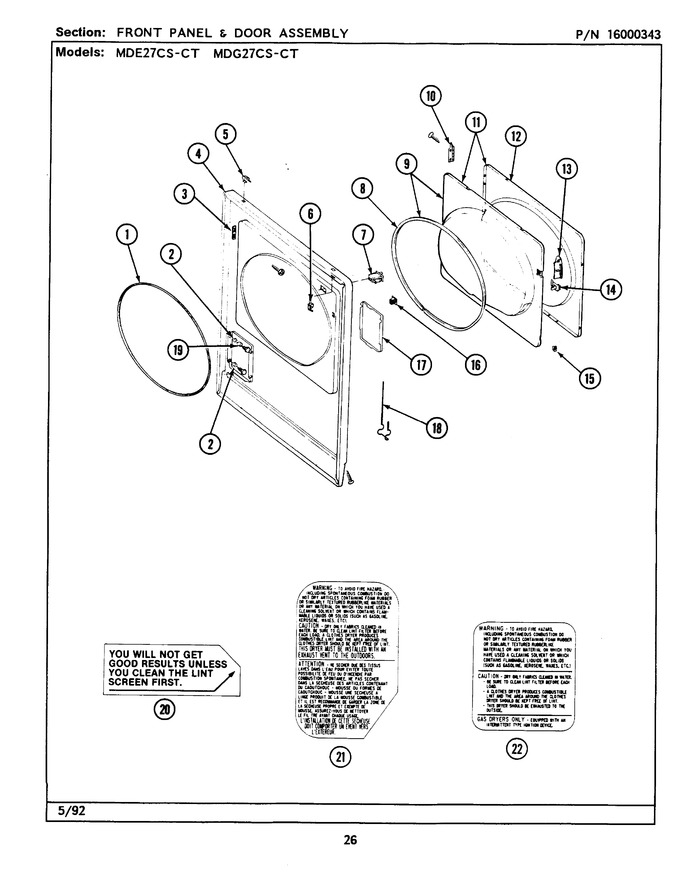

06 - Front Panel & Door Assembly


07 - Tumbler


08 - Heater (a3 Series)


09 - Motor, Blower & Base Frame


10 - Thermostats


11 - Heater (a0 Series)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	314937		Seal	AO			$ 5.00
002	NLA		Part Not Used	AO	Appelez-nous	-
003	Y313907		Fastener	AO	Appelez-nous	-
004	204439		Screw & Fastener Assy.	AO			$ 8.80
004	NLA		Front Panel-white	AO	Appelez-nous	-
005	WP22001650		Spring, Fastener   (Replaces: 212982)	AO		Immediately	$ 7.34
006	Y310376		Clip	AO	Appelez-nous	-
007	W10169313		Switch, Door   (Replaces: Y305754)	AO		Immediately	$ 29.18
008	314935		Seal, Door	AO	Appelez-nous	-
009	308069		Inner Door W/gasket	AO	Appelez-nous	-
010	307099		Hinge	AO	Appelez-nous	-
010	Y314062		Screw	AO			$ 12.03
011	NLA		Door Assy. Complete (white)	AO	Appelez-nous	-
012	314967		Panel, Door-outer (white)	AO	Appelez-nous	-
012	NLA		(almond)	AO	Appelez-nous	-
013	314939		Handle (white)	AO			$ 32.46
013	314974		(almond)	AO	Appelez-nous	-
014	WP33001305		Door Strike   (Replaces: 314936)	AO			$ 2.31
014	WP33001305		Strike Bracket   (Replaces: 314944)	AO			$ 2.31
015	Y313910		Clip	AO	Appelez-nous	-
016	306436		Door Latch Kit--w	AO		Immediately	$ 10.17
017	NLA		Part Not Used	AO	Appelez-nous	-
018	Y314025		Part Not Used	AO	Appelez-nous	-
019	312369		Part Not Used	AO	Appelez-nous	-
020	Y313340		Instruction Decal	AO	Appelez-nous	-
021	314941		Instruction Decal	AO	Appelez-nous	-
022	NLA		Instruction Label	AO	Appelez-nous	-
