Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10168033 Use & Care Guide Appelez-nous -
1 W10281612 Wiring Diagram Appelez-nous -
1 W10185365 Installation Instructions Appelez-nous -
1 9762761 Tips, Safe Cooking (english) Appelez-nous -
1 W10065852 Tips, Safe Cooking (french) Appelez-nous -
2 W10281222 Cooktop (black) Appelez-nous -
2 W10281218 Cooktop (white) Appelez-nous -
3 74008761 Spacer Snap-in   (Replaces: 8010P149-60) Special Order $ 7.55

4 W11171119 Element, Lr/rr   (Replaces: 8273994) In-Stock Immediately $ 164.01

5 WP9762851 Element, Warm   (Replaces: 9762851) In-Stock Immediately $ 248.88

6 74007134 Spring, Element   (Replaces: 7803P087-60) Special Order $ 10.51

7 WP3196175 Screw   (Replaces: 3196165) Special Order $ 6.47

8 W10170717 Bottom, Burner Box Appelez-nous -
9 WPW10275049 Element, Lf   (Replaces: W10173896) In-Stock Immediately $ 282.81

10 W10823720 Element, Rf   (Replaces: 7406P441-60) In-Stock Immediately $ 302.91


    View Diagram in Separate Window     Print Icon   Print Part List

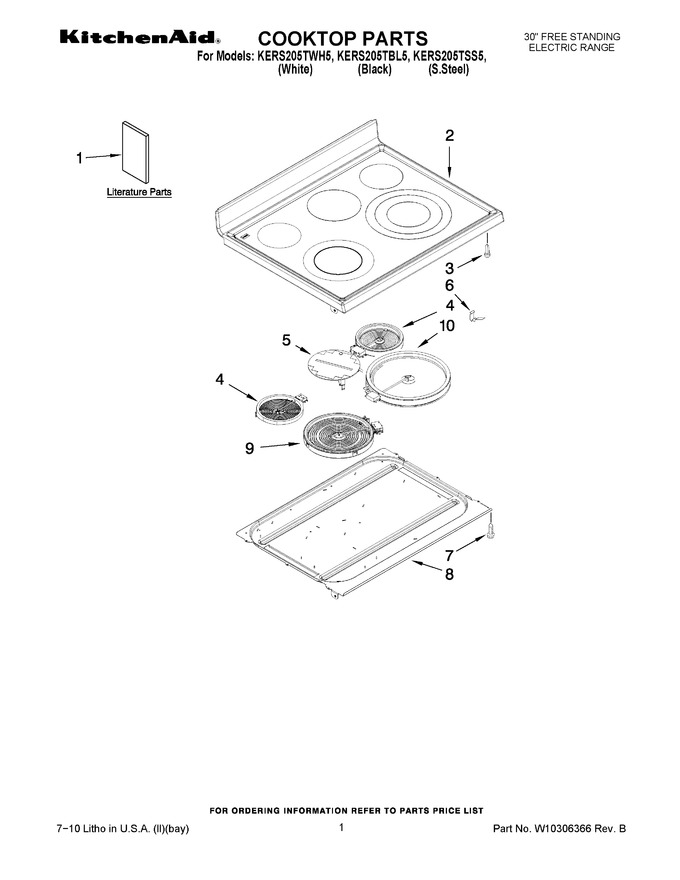

Diagram for KERS205TWH5
