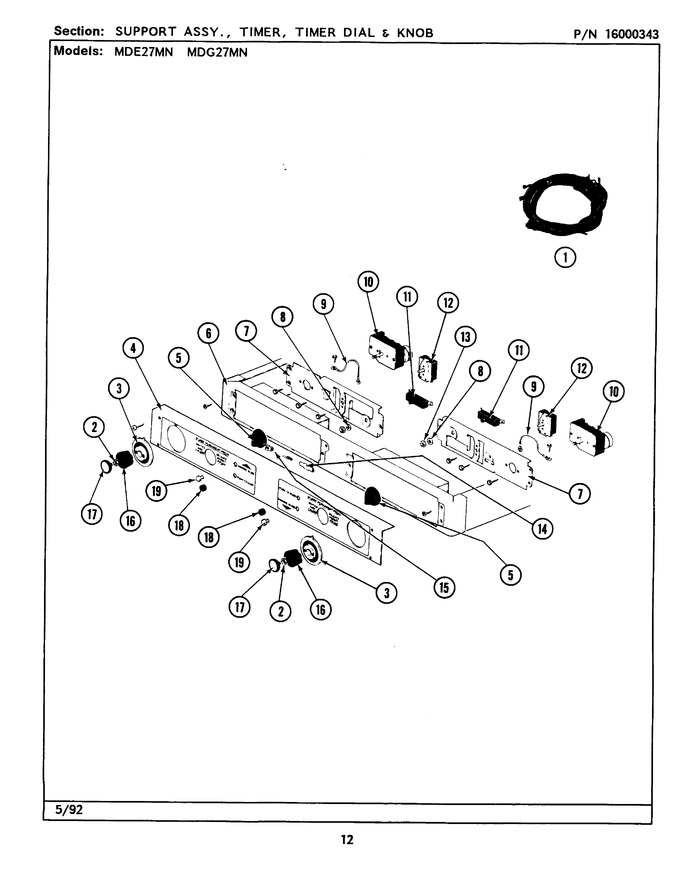

03 - Support Assy., Timer, Timer Dial & Knob


04 - Front Panel & Door


05 - Tumbler


06 - Heater (a3 Series)


07 - Motor, Blower & Base Frame


08 - Thermostats


09 - Heater (a0 Series)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	NLA		(lower)	A0	Appelez-nous	-
001	308301		Harness, Main (upper)	A3	Appelez-nous	-
002	W10155650		Nut   (Replaces: 312273)	AO			$ 12.03
003	314725		Timer Dial Indicator	AO	Appelez-nous	-
004	WP1163283		Screw   (Replaces: 314664)	AO			$ 6.47
004	NLA		Control Panel	AO	Appelez-nous	-
005	205663		Knob	AO	Appelez-nous	-
006	NLA		Support Assy. (white)	AO	Appelez-nous	-
006	Y310632		Screw	AO	Appelez-nous	-
007	NLA		Mtg. Bracket	AO	Appelez-nous	-
007	910186		Screw	AO	Appelez-nous	-
008	WPW10139799		Lock Washer   (Replaces: 312751)	AO			$ 8.32
009	WPW10139210		Screw   (Replaces: 211168)	AO			$ 6.75
009	205810		Ground Wire	AO	Appelez-nous	-
009	WP489399		Screw   (Replaces: 211252)	AO			$ 6.26
010	WP488234		Screw   (Replaces: Y313588)	AO			$ 6.07
010	Y307296		Timer Rpr	AO			$ 148.86
011	WPW10149462		Switch, Push-to-start   (Replaces: 306940)	AO			$ 60.77
012	307253		Switch, Cycle	AO	Appelez-nous	-
012	WP488234		Screw   (Replaces: Y313588)	AO			$ 6.07
013	Y312706		Hex Nut	AO	Appelez-nous	-
014	Y201110		Wire Connector	AO	Appelez-nous	-
015	204075		Light, Indicator	AO	Appelez-nous	-
016	W11232017		Knob, Timer   (Replaces: 314724)	AO			$ 11.13
017	WPW10133501		Knob Cap   (Replaces: 314723)	AO			$ 54.76
018	Y312702		Knurled Nut	AO			$ 18.18
019	WP215564		Lens   (Replaces: 215564)	AO		Immediately	$ 7.14
