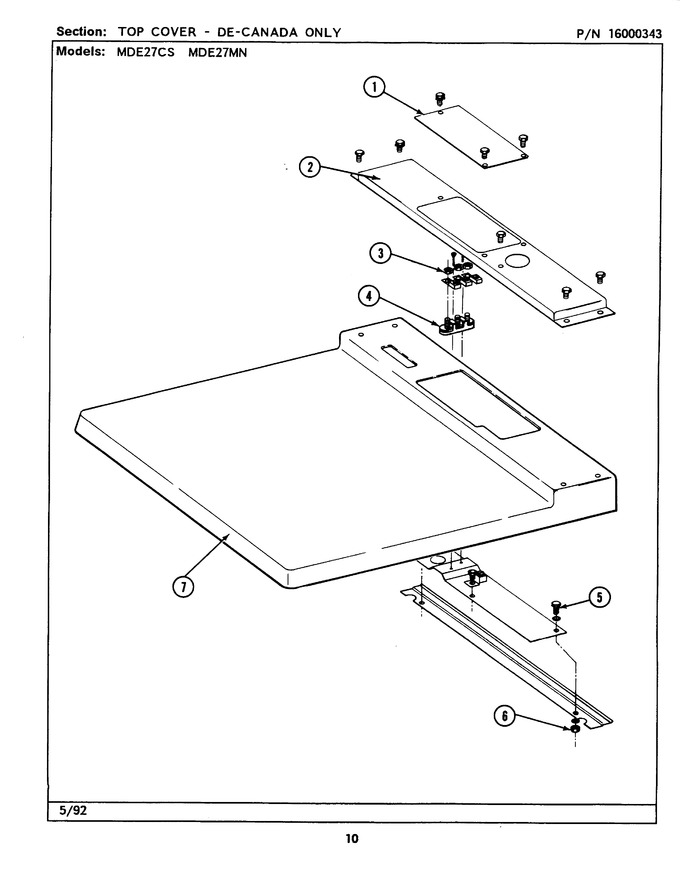

SELECT A DIAGRAM

01 - Front


02 - Rear


03 - Top Cover


04 - Support Assy., Timer, Timer Dial & Knob


05 - Front Panel & Door


06 - Tumbler


07 - Heater (a3 Series)


08 - Motor, Blower & Base Frame


09 - Thermostats


10 - Heater (a0 Series)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP90767		Screw   (Replaces: 211294)	A0		Immediately	$ 7.04
001	WP90767		Screw   (Replaces: Y313559)	A0		Immediately	$ 7.04
001	Y314174		Terminal Cover - Canada	A0	Appelez-nous	-
002	WP90767		Screw   (Replaces: 211294)	A0		Immediately	$ 7.04
002	NLA		Conduit Entrance	A0	Appelez-nous	-
002	WP90767		Screw   (Replaces: Y313559)	A0		Immediately	$ 7.04
003	WP112432		Nut   (Replaces: 311484)	A0			$ 7.16
004	400008		Block, Terminal	A0			$ 29.20
004	W11164114		Screw   (Replaces: Y312209)	A0			$ 3.76
005	NLA		Screw	A0	Appelez-nous	-
006	Y052721		Nut	A0			$ 21.38
007	NLA		Top Cover-white	A0	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
