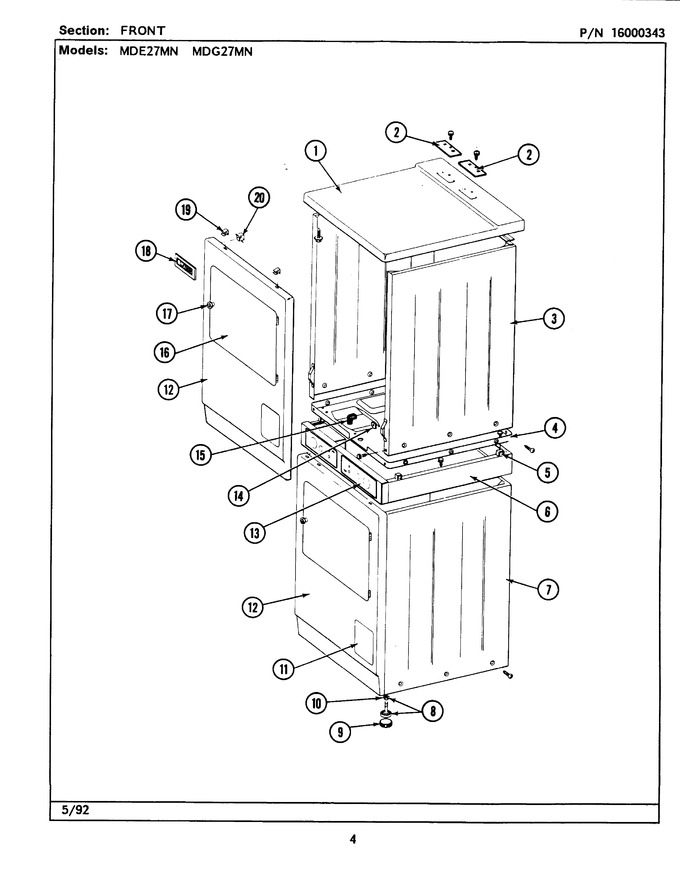

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	204445		Screw & Fastener Assy.	A0	Appelez-nous	-
001	307104		Top Cover Assy. (white)	A0	Appelez-nous	-
001	NLA		(almond)	A0	Appelez-nous	-
002	NLA		Top Cover Plate	A0	Appelez-nous	-
002	WP90767		Screw   (Replaces: Y313559)	A0		Immediately	$ 7.04
003	204445		Screw & Fastener Asy.	A0	Appelez-nous	-
003	NLA		Cabinet, Upper (white)	A0	Appelez-nous	-
004	314663		Screw	A0	Appelez-nous	-
004	Y307482		Base Assy., Upper	A0	Appelez-nous	-
005	310933		Fastener	A0	Appelez-nous	-
006	307314L		(almond)	A0	Appelez-nous	-
006	NLA		Support Assy. (white)	A0	Appelez-nous	-
006	Y310632		Screw	A0	Appelez-nous	-
007	314663		Screw	A0	Appelez-nous	-
007	NLA		Cabinet, Lower (white)	A0	Appelez-nous	-
008	22003428		Adjustable Leg & Nut   (Replaces: Y302699)	A0		Immediately	$ 14.41
009	WP210684		Rubber Foot   (Replaces: 210684)	A0		Immediately	$ 14.09
010	WP210385		Lock Nut   (Replaces: 210385)	A0			$ 6.26
011	NLA		Part Not Used	A0	Appelez-nous	-
012	NLA		Front Panel-white	A0	Appelez-nous	-
013	WP1163283		Screw   (Replaces: 314664)	A0			$ 6.47
013	NLA		Control Panel	A0	Appelez-nous	-
014	NLA		Retainer	A0	Appelez-nous	-
015	314522		Strain Relief	A0	Appelez-nous	-
016	308062		Door Assy. Complete (white)	A0	Appelez-nous	-
016	NLA		(almond)	A0	Appelez-nous	-
017	NLA		Knob & Screw, Door	A0	Appelez-nous	-
018	NLA		Name Plate	A0	Appelez-nous	-
019	WP22001650		Spring, Fastener   (Replaces: 212982)	A0		Immediately	$ 7.34
020	Y310376		Fastener Clip	A0	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
