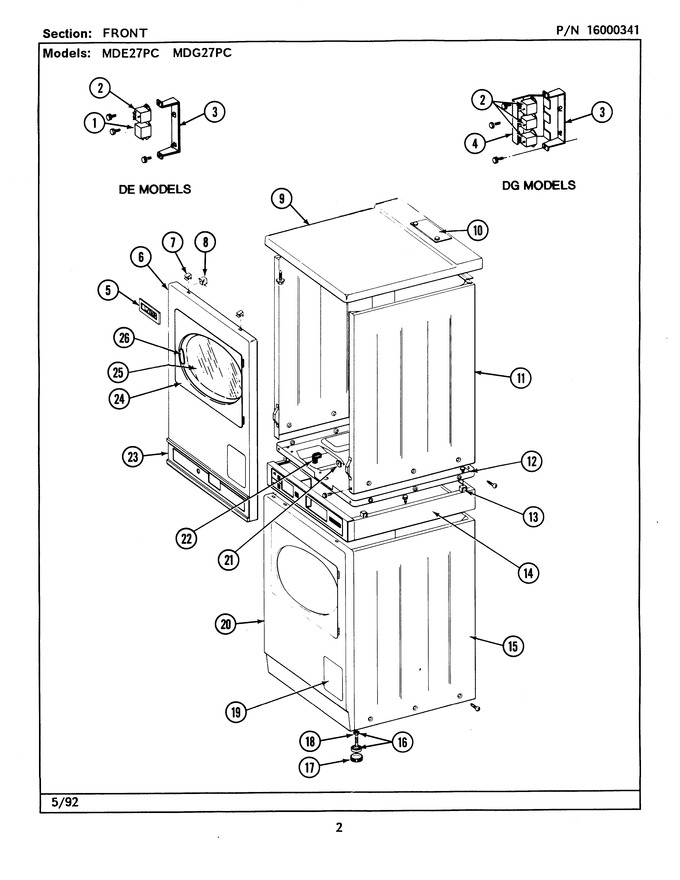

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 306398 | Relay | A0 |
|
$ 41.78 | ||||
| 001 | WP3177991 | Screw (Replaces: Y251119) | A0 |
|
Immediately | $ 6.47 | |||
| 002 | 901961 | Relay (4 Contact) | A0 |
|
- | ||||
| 002 | WP3177991 | Screw (Replaces: Y251119) | A0 |
|
Immediately | $ 6.47 | |||
| 003 | 314627 | Relay Bracket | A0 |
|
- | ||||
| 003 | Y310632 | Screw | A0 |
|
- | ||||
| 004 | NLA | Part Not Used | A0 |
|
- | ||||
| 004 | Y310632 | Part Not Used | A0 |
|
- | ||||
| 005 | NLA | Name Plate | A0 |
|
- | ||||
| 006 | NLA | Panel, Front Upper (white) | A0 |
|
- | ||||
| 007 | WP22001650 | Fastener, Spring (Replaces: 212982) | A0 |
|
Immediately | $ 7.34 | |||
| 008 | Y310376 | Clip, Fastener | A0 |
|
- | ||||
| 009 | 307104 | Top Cover Assy. (white) | A0 |
|
- | ||||
| 009 | NLA | (almond) | A0 |
|
- | ||||
| 010 | NLA | Top Cover Plate | A0 |
|
- | ||||
| 010 | WP90767 | Screw (Replaces: Y313559) | A0 |
|
Immediately | $ 7.04 | |||
| 011 | 204445 | Screw & Fastener Asy. | A0 |
|
- | ||||
| 011 | 213007 | Screw | A0 |
|
$ 10.99 | ||||
| 011 | NLA | Cabinet, Upper (white) | A0 |
|
- | ||||
| 012 | 306261 | Base Assy., Upper Dryer | A0 |
|
- | ||||
| 012 | 314663 | Screw | A0 |
|
- | ||||
| 013 | 310933 | Fastener | A0 |
|
- | ||||
| 014 | NLA | Coupling Collar-white | A0 |
|
- | ||||
| 014 | Y310632 | Screw | A0 |
|
- | ||||
| 015 | NLA | Cabinet, Lower (white) | A0 |
|
- | ||||
| 016 | 22003428 | Leg, Adjustable (w/nut)---s (Replaces: Y302699) | A0 |
|
Immediately | $ 14.41 | |||
| 017 | WP210684 | Foot, Rubber (Replaces: 210684) | A0 |
|
Immediately | $ 14.09 | |||
| 018 | WP210385 | Nut, Lock (Replaces: 210385) | A0 |
|
$ 6.26 | ||||
| 019 | NLA | Part Not Used | A0 |
|
- | ||||
| 020 | 204439 | Screw & Fastener Assy. | A0 |
|
$ 8.80 | ||||
| 020 | NLA | (almond) | A0 |
|
- | ||||
| 020 | Y308463 | Panel, Front (white) | A0 |
|
- | ||||
| 021 | NLA | Retainer, Front Panel | A0 |
|
- | ||||
| 022 | 314522 | Strain Relief | A0 |
|
- | ||||
| 023 | NLA | Upper Control Extrusion | A0 |
|
- | ||||
| 024 | 314967 | Door Panel (white) | A0 |
|
- | ||||
| 024 | NLA | Door Assy. Complete (white) | A0 |
|
- | ||||
| 025 | 308069 | Door, Inner W/gasket | A0 |
|
- | ||||
| 026 | 314939 | Handle, Door (white) | A0 |
|
$ 32.46 | ||||
| 026 | 314974 | (almond) | A0 |
|
- |
