SELECT A DIAGRAM

01 - Front


02 - Rear


03 - Top Cover


04 - Controls & Upper Dryer Front Panel


05 - Front Panel & Door Assembly


06 - Lint Screen, Tumbler (front & Back)


07 - Heater (a3 Series)


08 - Motor, Blower, Base Frame & Thermostats


09 - Heater (a0 Series)

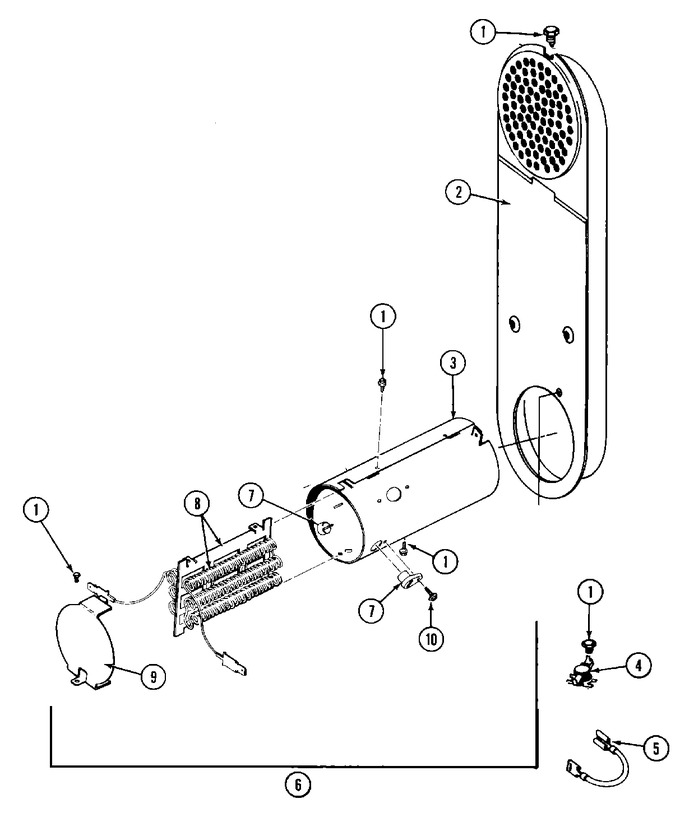

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP90767		Screw   (Replaces: 211294)	A3		Immediately	$ 7.04
002	308503		Inlet Duct Assy.	A5	Appelez-nous	-
002	NLA		Inlet Duct Assy.	A3	Appelez-nous	-
003	314995		Heater Enclosure	A3	Appelez-nous	-
004	308217		Thermostat, Hi-limit	A3	Appelez-nous	-
005	WPY307173		Wire, Jumper   (Replaces: Y307173)	A3			$ 6.47
006	Y308259		Heater Assy. Complete (240v)	A3	Appelez-nous	-
007	314998		Insulator, Terminal	A3			$ 18.77
008	WP308614		Heater, Sub Assy. (240v)   (Replaces: 307185)	A3			$ 326.97
009	314999		Shield, Radiant	A3	Appelez-nous	-
010	NLA		Screw, Terminal Insulator	A3	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
