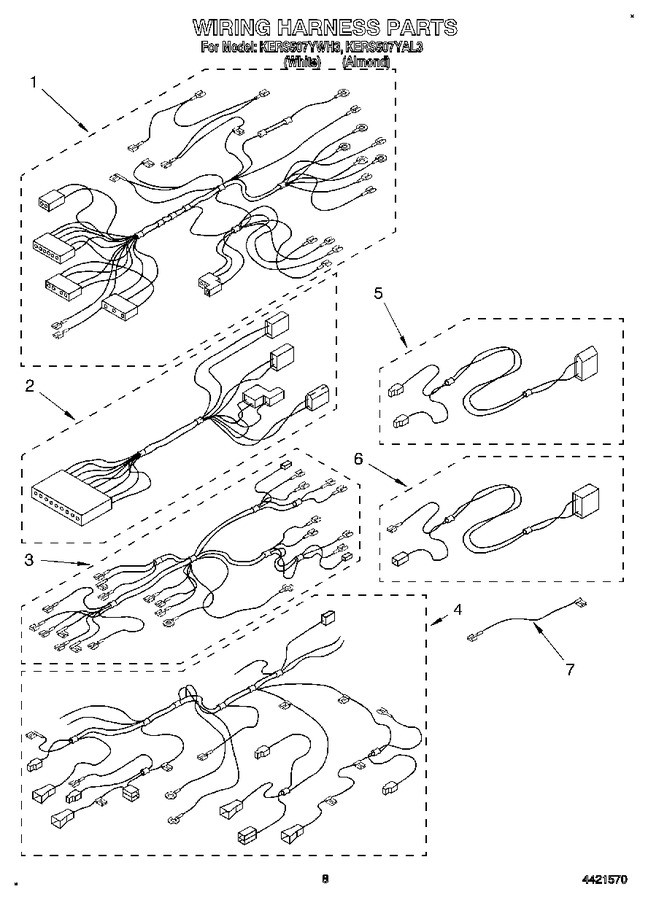

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9781212 | Harness, Wire (oven) |
|
- | |||||
| 2 | 9781214 | Harness, Wire (lock Switch) |
|
- | |||||
| 3 | 9751014 | Harness, Wire (cooktop) |
|
- | |||||
| 4 | 9751148 | Harness, Wire (control) |
|
- | |||||
| 5 | 9750376 | Harness, Wire (door Switch) |
|
- | |||||
| 6 | 9752088 | Harness, Wire (probe) |
|
- | |||||
| 7 | 9751003 | Lead, Ground |
|
- |
