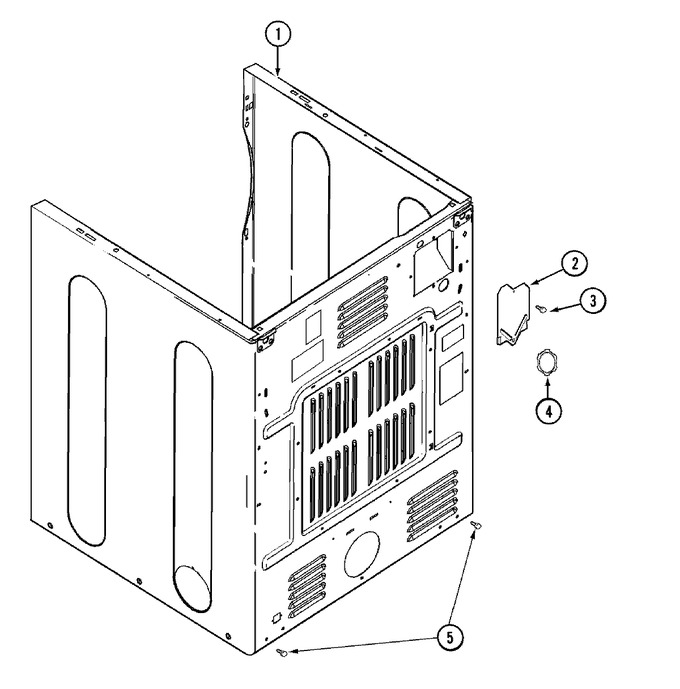

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22003643 | Cabinet Assy. (wht As Pk) | 10 |
|
- | ||||
| 2 | 33001795 | Cover, Terminal Block | 10 |
|
- | ||||
| 3 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 4 | 33001425 | Locknut, Eared For Canadian | 10 |
|
- | ||||
| 5 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 |
