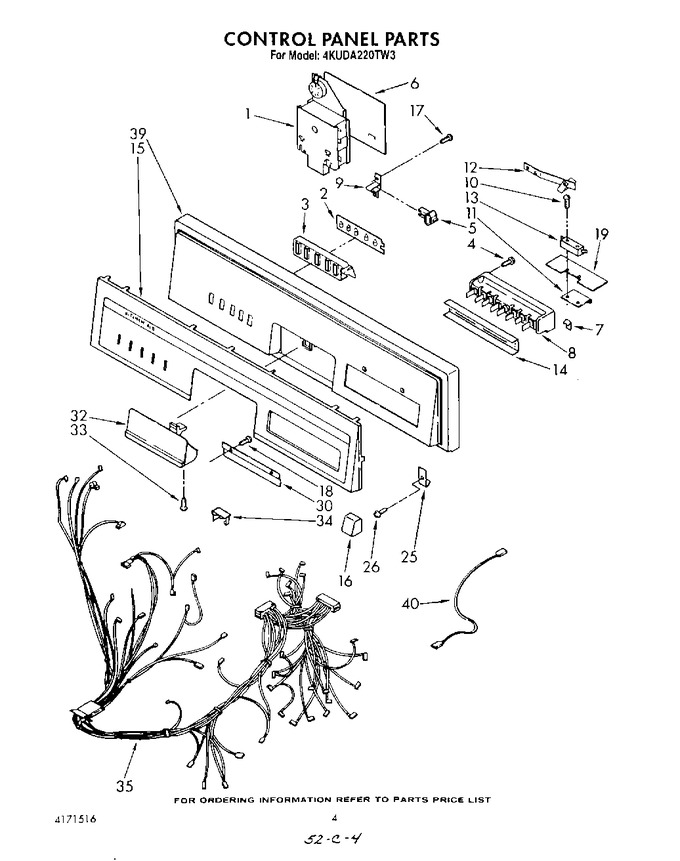

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4171245 | Timer |
|
- | |||||
| 2 | 4171380 | Board, Light |
|
- | |||||
| 3 | 4171236 | Light Cover |
|
- | |||||
| 4 | 4159432 | Screw, Drive (2) |
|
- | |||||
| 5 | 4171272 | Spring, Switch |
|
- | |||||
| 6 | 4171158 | Barrier, Timer |
|
- | |||||
| 7 | 9740019 | Spacer, Interlock Bracket |
|
- | |||||
| 8 | 4171250 | Switch, Program |
|
- | |||||
| 9 | 4171253 | Guide, Cancel Spring |
|
- | |||||
| 10 | 9740003 | Screw (2) |
|
- | |||||
| 11 | 4171255 | Bracket, Interlock Switch |
|
- | |||||
| 12 | 4171256 | Spring, Interlock |
|
- | |||||
| 13 | 4163602 | Switch, Interlock |
|
- | |||||
| 14 | 4171400 | Bracket, Program Switch |
|
- | |||||
| 15 | 4171202 | Insert, Control Panel |
|
- | |||||
| 16 | 4171254 | Pushbutton (8) |
|
- | |||||
| 17 | WP488921 | Screw, No.8 X 1/2 (Replaces: 4171381) |
|
Immediately | $ 6.98 | ||||
| 18 | 4159364 | Screw, 8 X 5/16 |
|
- | |||||
| 19 | 9740119 | Insulator, Door Switch |
|
- | |||||
| 25 | 4162043 | Clip, Grounding (front Panel) |
|
- | |||||
| 26 | 4159373 | Screw, 8-18 X 1/2 |
|
- | |||||
| 30 | 4171364 | Bracket, Door Panel |
|
- | |||||
| 32 | 4171270 | Handle, Latch |
|
- | |||||
| 33 | 4159225 | Screw, 10-32 X 5/8 |
|
- | |||||
| 34 | 4163372 | Clip, Harness Guide |
|
- | |||||
| 35 | 9740379 | Wiring Harness (main) |
|
- | |||||
| 35 | 4159349 | Screw, 8-18 X 3/8 |
|
- | |||||
| 39 | 9740226 | Control Panel (includes Item 15) |
|
- | |||||
| 39 | 4163538 | Pushnut, Membrane |
|
- | |||||
| 40 | 4171351 | Lead, Program Switch |
|
- | |||||
| LIT9740090 | Tag, Energy Fact |
|
- | ||||||
