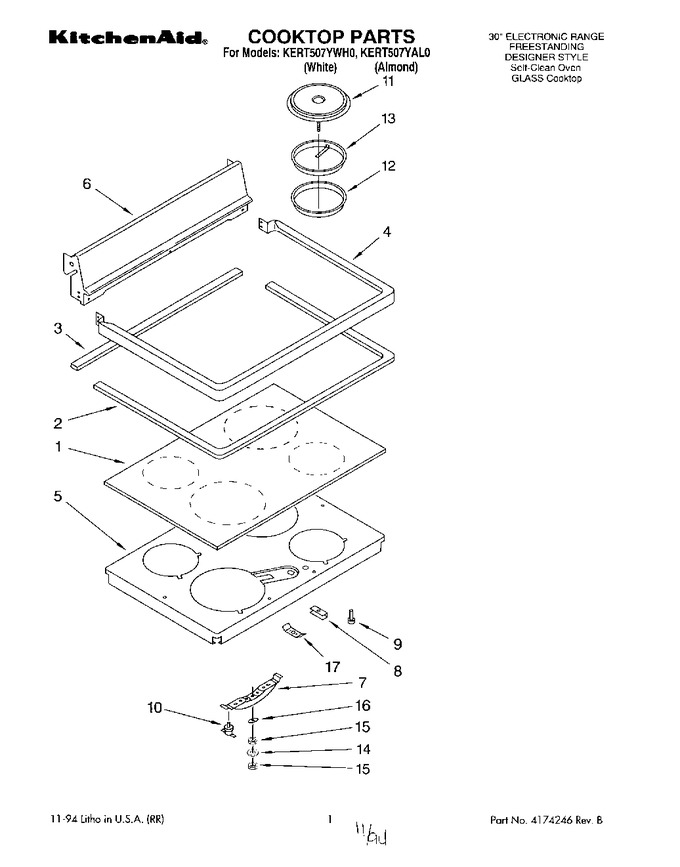

| 1 | 9780299 | Cooktop, Glass (white Mdl.) |
|
- | |||||
| 1 | 9780344 | Cooktop, Glass (almond Mdl.) |
|
- | |||||
| 2 | WP9780939 | Gasket, Cooktop (front & Sides) (Replaces: 9780939) |
|
Immediately | $ 60.83 | ||||
| 3 | 9780743 | Rear Gasket |
|
- | |||||
| 4 | 4211918 | Frame, Cooktop (white) |
|
- | |||||
| 4 | WP681414 | Frame, Cooktop (screw, (4) 10ab X 1/2) (Replaces: 9780930) |
|
Immediately | $ 7.07 | ||||
| 4 | 4211919 | Frame, Cooktop (almond) |
|
- | |||||
| 5 | 9750673 | Support, Element |
|
- | |||||
| 6 | WP681414 | Back Splash (screw (4) 10ab X 1/2``) (Replaces: 9780930) |
|
Immediately | $ 7.07 | ||||
| 6 | 4211922 | Back Splash (almond) |
|
- | |||||
| 6 | 4211921 | Back Splash (white Mdl.) |
|
- | |||||
| 7 | 4211820 | Fixing Bracket (145mm (2)) |
|
- | |||||
| 7 | 4211842 | Fixing Bracket (220mm) |
|
- | |||||
| 7 | 4211805 | Fixing Bracket (180mm) |
|
- | |||||
| 8 | 9750821 | Support Clips (4) |
|
- | |||||
| 8 | 423248 | Screw, (4) 10 X 3/4`` |
|
- | |||||
| 9 | 238614 | Bumper (4) (Replaces: 9750969) |
|
$ 72.68 | |||||
| 10 | 4211857 | Safety Switch Element, Surface |
|
- | |||||
| 11 | 9750555 | 220 Mm - Lf |
|
- | |||||
| 11 | 9750553 | 180 Mm - Rr |
|
- | |||||
| 11 | 9750550 | 145 Mm - Lr, Rf |
|
- | |||||
| 12 | 4211828 | Seal, Element (145mm (2)) |
|
- | |||||
| 12 | 4211834 | Seal, Element (180mm) |
|
- | |||||
| 12 | 4211846 | Seal, Element (220mm) |
|
- | |||||
| 13 | 4211836 | Collar, Mounting (145mm, (2)) |
|
- | |||||
| 13 | 4211843 | Collar, Mounting (220mm) |
|
- | |||||
| 13 | 4211839 | Collar, Mounting (180mm) |
|
- | |||||
| 14 | 4211882 | Washer, (4) |
|
- | |||||
| 15 | 4211821 | Nut, (8) |
|
- | |||||
| 16 | 4211822 | Spring, Leaf (4) |
|
- | |||||
| 17 | 915720 | Screw, Anchor (2) |
|
- | |||||
| LIT9781161 | Use And Care Guide |
|
- | ||||||
| LIT9750520 | Instructions, Installation |
|
- | ||||||
| LIT9780945 | Label, Instruction (lamp Cover) |
|
- | ||||||
| LIT3183987 | Guide, Auto Set |
|
- | ||||||
| LIT9780689 | Quick Set (oven) |
|
- | ||||||
| LIT9750876 | Wiring Diagram |
|
- | ||||||
| LIT9750877 | Tech Sheet-k/a |
|
- | ||||||
| LIT3150693 | Cookbook, T/c Ovens |
|
- | ||||||
| LIT3183790 | Video, K/a T/c Ovens |
|
- |
