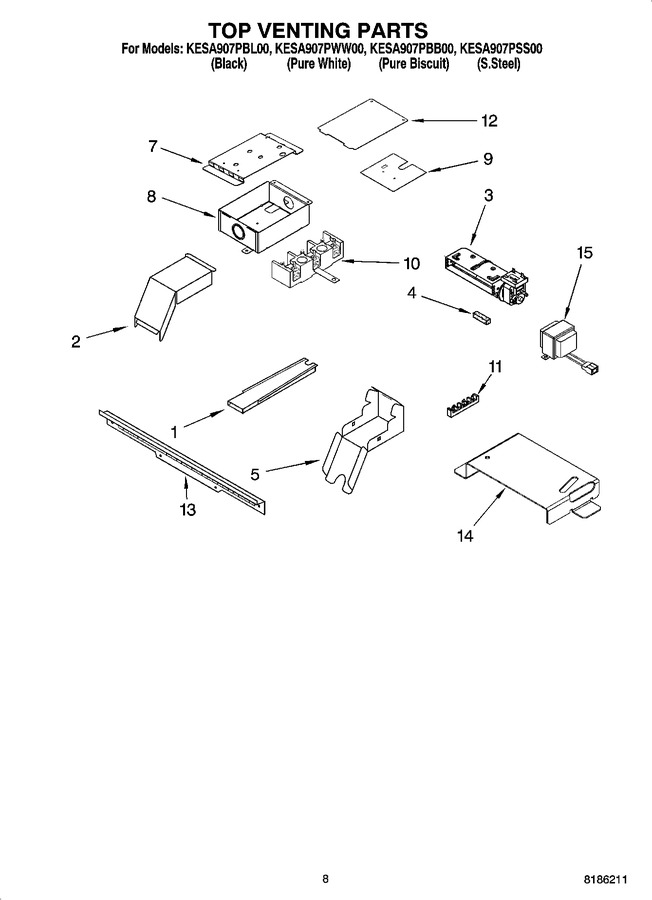

06 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4449040		Screw, 8-18 X 3/8   (Replaces: 4449040)				$ 6.78
1	4451759		Vent, Exhaust				$ 90.01
2	4455178		Elbow, Vent- Top				$ 13.30
3	W10810687		Blower   (Replaces: 8300223)			Immediately	$ 309.01
3	WP4449809		Screw (4)   (Replaces: 4449809)			Immediately	$ 6.47
3	WP4455352		Bracket   (Replaces: 4455352)				$ 32.15
4	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 6.98
5	4455177		Elbow, Vent- Bottom				$ 9.77
7	WP4449809		Screw (2)   (Replaces: 4449809)			Immediately	$ 6.47
7	9759883		Bracket, Term.box		Appelez-nous	-
8	W10115858		Box, Terminal   (Replaces: 9757404)				$ 104.57
8	WP4449809		Screw (3)   (Replaces: 4449809)			Immediately	$ 6.47
9	9759721		Insulator, Termianl Box		Appelez-nous	-
10	WP9761958		Block, Terminal   (Replaces: 9757136)			Immediately	$ 39.72
11	W11684512		Screw   (Replaces: 3400080)				$ 12.69
11	WP8203546		Block, Terminal   (Replaces: 4449868)			Immediately	$ 27.12
12	9757405		Cover, Term Box				$ 43.66
12	W10491985		Screw (2)   (Replaces: 3196160)			Immediately	$ 6.47
13	WP4450038		Screw   (Replaces: 4450038)				$ 6.84
13	9757118BL		Vent, (control Panel)		Appelez-nous	-
14	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
14	9757829		Bracket, Transfrmr		Appelez-nous	-
15	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
15	9756551		Transformer				$ 121.36
	N/A		Miscellaneous		Appelez-nous	-
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	9759855		Harness, Apssc Smart Knob				$ 65.60
	9756554		Harness, Comm.				$ 71.03
	9759715		Conduit		Appelez-nous	-
	313660		Clip, Ground Wire		Appelez-nous	-
	4448664		Clamp				$ 18.35
	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
	WP112432		Nut   (Replaces: 112432)				$ 7.16
	4450800		Screw, Ground				$ 11.55
	4452222		Spacer, Harness		Appelez-nous	-
	WP3400015		Screw, Ground   (Replaces: 3400015)				$ 6.47
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	814381		Hinge Pin Kit				$ 7.73
	WP4448950		Screw, Install (4)   (Replaces: 4448950)				$ 6.80
	W11447673		Anti-tip Assembly   (Replaces: 9782676)			Immediately	$ 28.64
	9757785WH		Filler, Counter Top (white)				$ 187.25
	9757785BL		Filler, Counter Top (black)				$ 102.15
	9757785BT		Filler, Counter Top (biscuit)				$ 75.54
	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
	WP261869		Paint, Touch-up (1/2oz.) (cord Brown)   (Replaces: 261869)				$ 23.85
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	261900		Paint, Spray (citrine White)				$ 51.34
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	285006		Spray Paint (black) 13 Oz.   (Replaces: 830864)			Immediately	$ 51.34
	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242829		Wire (12 Ga. 150 C Red)		Appelez-nous	-
	242832		Wire (14 Ga. 200 C Yellow)		Appelez-nous	-
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242826		Wire (14 Ga. 150 C White)		Appelez-nous	-
	9759791		Harness, Wire (main)				$ 186.63
	9759793		Harness, Wire (switch, Elec)		Appelez-nous	-
	9759795		Harness, Main Smart, Knob		Appelez-nous	-
	9759796		Harness, Wire (left)		Appelez-nous	-
	9759797		Harness, Wire (right)		Appelez-nous	-
