01 - Control Panel
02 - Door/drawer (3527xpx)
03 - Oven

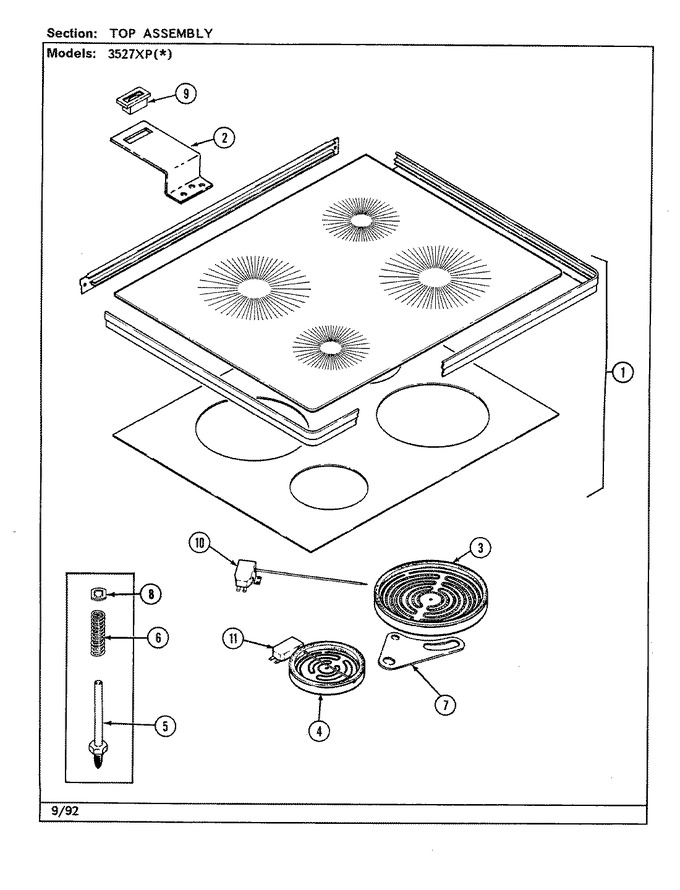

04 - Top Assembly (3527xp)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5706A011-60 | Main Top, Glass | 01 |
|
- | ||||
| 2 | 3801F305-80 | Bracket, Main Top | 01 |
|
- | ||||
| 2 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 2 | 3801F271-45 | Bracket Signal Lamps | 01 |
|
- | ||||
| 3 | W10823707 | Element W/receptacle (8``) (Replaces: 7406P073-60) | 01 |
|
Immediately | $ 316.13 | |||
| 4 | W10823704 | Element W/receptacle (6``) (Replaces: 7406P074-60) | 01 |
|
Immediately | $ 309.01 | |||
| 5 | 7113P013-60 | Pin, Element | 01 |
|
- | ||||
| 6 | 7803P066-60 | Spring, Element Support | 01 |
|
- | ||||
| 7 | 3819F013-45 | Clip, Element | 01 |
|
- | ||||
| 7 | WP74004005 | Screw (Replaces: 7101P076-60) | 01 |
|
$ 6.95 | ||||
| 8 | 7112P091-60 | Clip, Retainer | 01 |
|
- | ||||
| 9 | 7407P089-60 | Light, Indicator | 01 |
|
- | ||||
| 10 | Y04000063 | Limiter (8`` Element) | 01 |
|
- | ||||
| 11 | Y04000064 | Limiter (6`` Element) | 01 |
|
- | ||||
| 11 | WA906B | Scraper, Razor (Replaces: 8312P001-60) | 01 |
|
Immediately | $ 4.86 | |||
| 11 | 8112P105-60 | Manual, Use & Care-insert | 01 |
|
- | ||||
| 11 | 5175D052-60 | Harness, Burner Box | 01 |
|
- | ||||
| 11 | 8113P002-60 | Manual, Use & Care | 01 |
|
- | ||||
| 11 | CERAMABRYTE | Cleaner, Elco (Replaces: 8308P002-60) | 01 |
|
Immediately | $ 9.95 |
