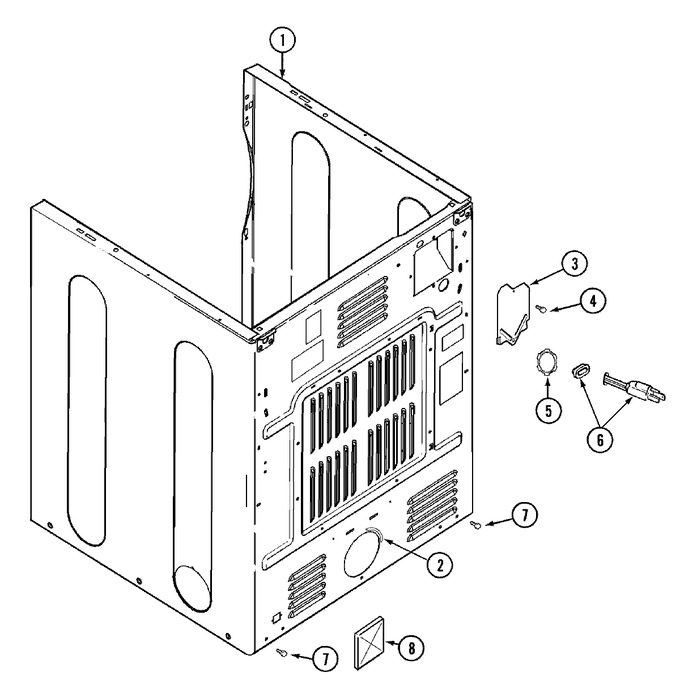

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22003639 | Cabinet Assy. (wht As Pk) | 38 |
|
- | ||||
| 1 | 22003582 | Cabinet, Assy. (wht-as Pk) | 36 |
|
- | ||||
| 1 | 22002548 | Cabinet Assy. (wht) | 10 |
|
- | ||||
| 3 | 33001795 | Cover, Terminal Block | 10 |
|
- | ||||
| 4 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | 33001425 | Locknut, Eared For Canadian | 10 |
|
- | ||||
| 6 | 33002233 | Cord, Power (can) | 10 |
|
- | ||||
| 6 | 33002184 | Cord, Power | 10 |
|
- | ||||
| 6 | 211881 | Grommet, Cord | 10 |
|
- | ||||
| 7 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 |
