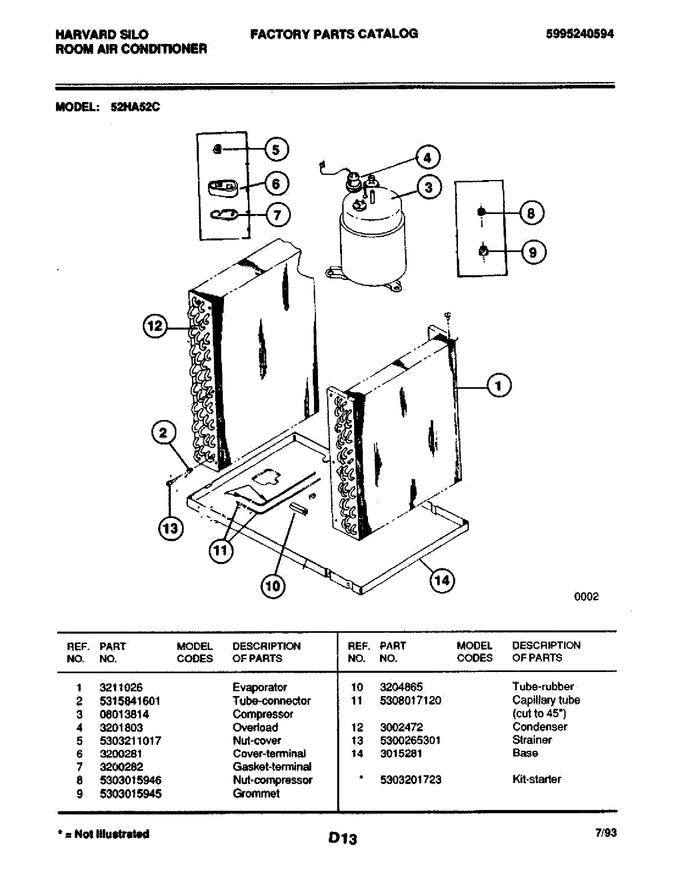

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3211026 | Evaporator |
|
- | |||||
| 2 | 5315841601 | Tube-connector |
|
- | |||||
| 3 | 08013814 | Compressor,115/60 |
|
- | |||||
| 4 | 3201803 | Overload |
|
- | |||||
| 5 | 5303211017 | Nut-cover |
|
- | |||||
| 6 | 3200281 | Cover-terminal |
|
- | |||||
| 7 | 3200282 | Gasket-terminal |
|
- | |||||
| 8 | 5303015946 | Nut-compressor |
|
- | |||||
| 9 | 5303015945 | Grommet-compressor |
|
- | |||||
| 10 | 3204865 | Tube-rubber |
|
- | |||||
| 11 | 5308017120 | Capillary Tube, Cut To 45`` |
|
- | |||||
| 12 | 3002472 | Condenser |
|
- | |||||
| 13 | 5300265301 | Strainer |
|
$ 284.30 | |||||
| 14 | 3015281 | Base |
|
- | |||||
| 5303201723 | Kit-starter |
|
- |
