View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop, Literature

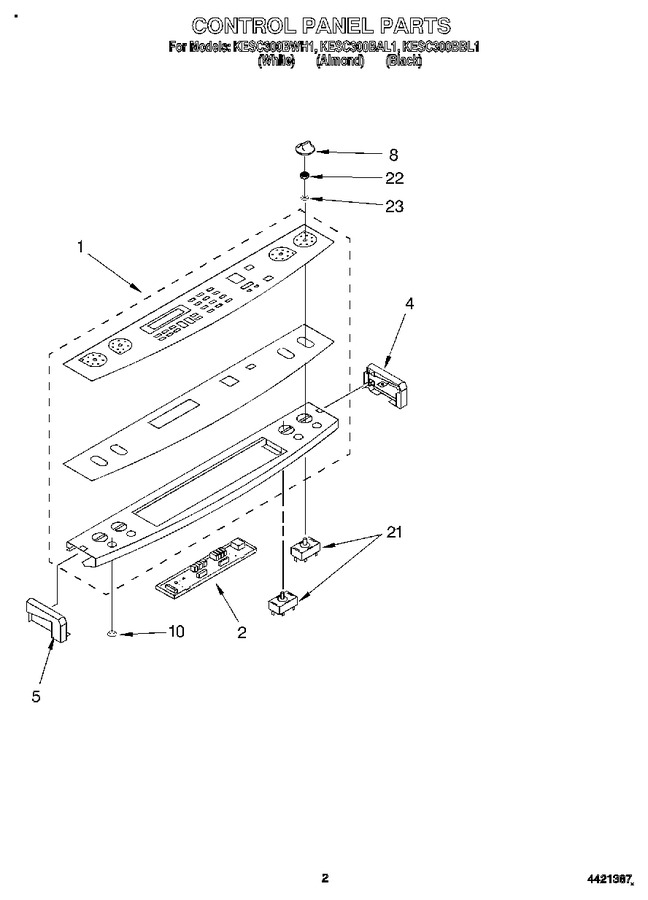

02 - Control Panel
03 - Door And Drawer
04 - Oven Chassis
05 - Oven
06 - Wiring Harness
07 - Rear Chassis, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9751896 | Console, Glass (assembly) (white) |
|
- | |||||
| 1 | 9751901 | Console, Glass (assembly) (almond) |
|
- | |||||
| 1 | 9751899 | Console, Glass (assembly) (black) |
|
- | |||||
| 2 | 9751213 | Timer, Electronic |
|
- | |||||
| 2 | 9780271 | Screw, (2) |
|
- | |||||
| 4 | 4421440 | End Cap R.h. (almond) |
|
- | |||||
| 4 | 4421441 | End Cap R.h. (black) |
|
- | |||||
| 4 | 4421439 | End Cap R.h. (white) |
|
- | |||||
| 4 | 9780265 | End Cap R.h. (screw, (2) 10 X 3/8) |
|
- | |||||
| 5 | 4421437 | End Cap L.h. (almond) |
|
- | |||||
| 5 | 9780265 | End Cap L.h. (screw, (2) 10 X 3/8) |
|
- | |||||
| 5 | 4421438 | End Cap L.h. (black) |
|
- | |||||
| 5 | 4421436 | End Cap L.h. (white) |
|
- | |||||
| 8 | 4211913 | Knobs, Control (almond) |
|
$ 19.39 | |||||
| 8 | WP9750372FW | Knobs, Control (white) (Replaces: 4211909) |
|
$ 17.99 | |||||
| 8 | 4211983 | Knobs, Control (black) |
|
- | |||||
| 10 | 9780799 | Indicator Lens (4) |
|
- | |||||
| 10 | 9751871 | Screw (2) No.10 Type B 1`` |
|
- | |||||
| 21 | 8203536 | Switch, Infinite (dual Element, Rr) (Replaces: 9751758) |
|
Immediately | $ 183.74 | ||||
| 21 | 9751364 | Switch, Infinite (1250-1500w, Lr) |
|
$ 72.83 | |||||
| 21 | 9751362 | Switch, Infinite (2100-2600w, Lf) |
|
$ 72.53 | |||||
| 21 | 9751363 | Switch, Infinite (1700w, Rf) |
|
$ 71.70 | |||||
| 22 | 4211830 | Nut, Mounting (lr-lf-rr) |
|
- | |||||
| 22 | 9751711 | Nut, Mounting (rr) |
|
- | |||||
| 23 | 4211860 | Seal, Switch (4) |
|
- |
