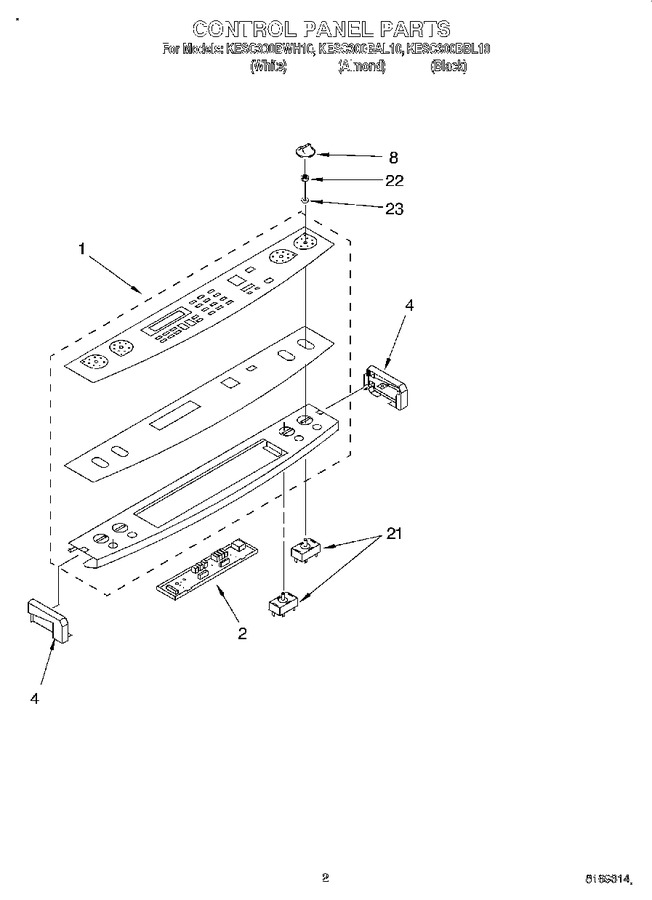

SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Door And Drawer


04 - Oven Chassis


05 - Oven


06 - Rear Chassis, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9751896		Console, Glass (assembly) (white)		Appelez-nous	-
1	9751901		Console, Glass (assembly) (almond)		Appelez-nous	-
1	9751899		Console, Glass (assembly) (black)		Appelez-nous	-
1	9780265		Console, Glass (assembly) (screw (2))		Appelez-nous	-
2	9780271		Screw, (2)		Appelez-nous	-
2	3191107		Timer, Electronic		Appelez-nous	-
4	9751040FW		End Cap (right Hand) (white)		Appelez-nous	-
4	9751039FT		(end Cap Left Hand) (almond)		Appelez-nous	-
4	9751039FW		(end Cap Left Hand) (white)		Appelez-nous	-
4	9751040FB		End Cap Right Hand (black)		Appelez-nous	-
4	9751040FT		End Cap (right Hand) (almond)		Appelez-nous	-
4	9780265		(end Cap Left Hand) (screw (2) 10 X 3/8)		Appelez-nous	-
4	9751039FB		(end Cap Left Hand) (black)		Appelez-nous	-
8	9750372FT		Knobs, Control (4) (almond)		Appelez-nous	-
8	WP9750372FF		Knobs, Control (4) (black)   (Replaces: 9750372FF)			Immediately	$ 18.86
8	9751871		Knobs, Control (4) (screw (2) No.10 Type B 1``)		Appelez-nous	-
8	WP9750372FW		Knobs, Control (4) (white)   (Replaces: 9750372FW)				$ 17.99
21	9751363		Switch, Infinite (1700w, Rf)				$ 71.70
21	9751362		Switch, Infinite (2100-2600w, Lf)				$ 72.53
21	9751364		Switch, Infinite (1250-1500w, Lr)				$ 72.83
21	8203536		Switch, Infinite (dual Element, Rr)   (Replaces: 9751758)			Immediately	$ 183.74
22	9751711		Nut, Mounting (dual Element)		Appelez-nous	-
22	00422610		Nut, Mounting (single Element)   (Replaces: 422617)				$ 139.96
23	9781455		Seal, Switch (4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
